Specifications
| Feature | Description |
|---|---|
| Type | Single-row round bale hauler (4 Series) |
| Bale Capacity | 18 4'round bales |
| Cradle Length | 36 ft |
| Total Length | ~45 ft |
| Width | 129" |
| Dumping System | Manual latch (hydraulic dump latch optional) |
| Axles | Tandem 2 × 10,000 lb (dual wheels) |
| GAWR | 10,000 lb |
| GVWR | 20,000 lb |
| Jacks | 2 × 12k manual jacks (hydraulic option available) |
| Brakes | Electric brakes with breakaway system |
| Tires | 8 x 235/80R 16, 16" rims (dual) |
| Shipping Weight | 6,050 lb |

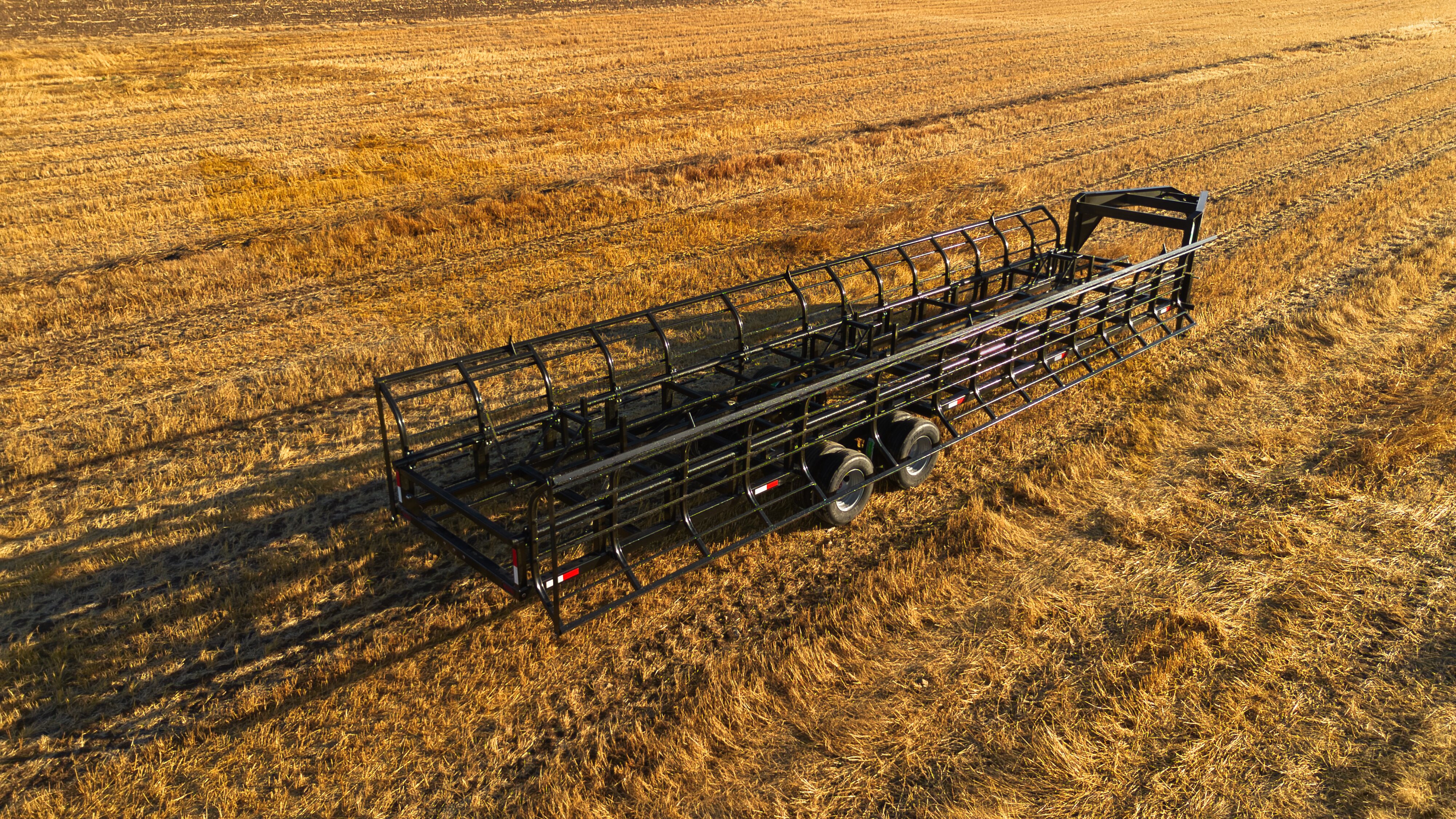

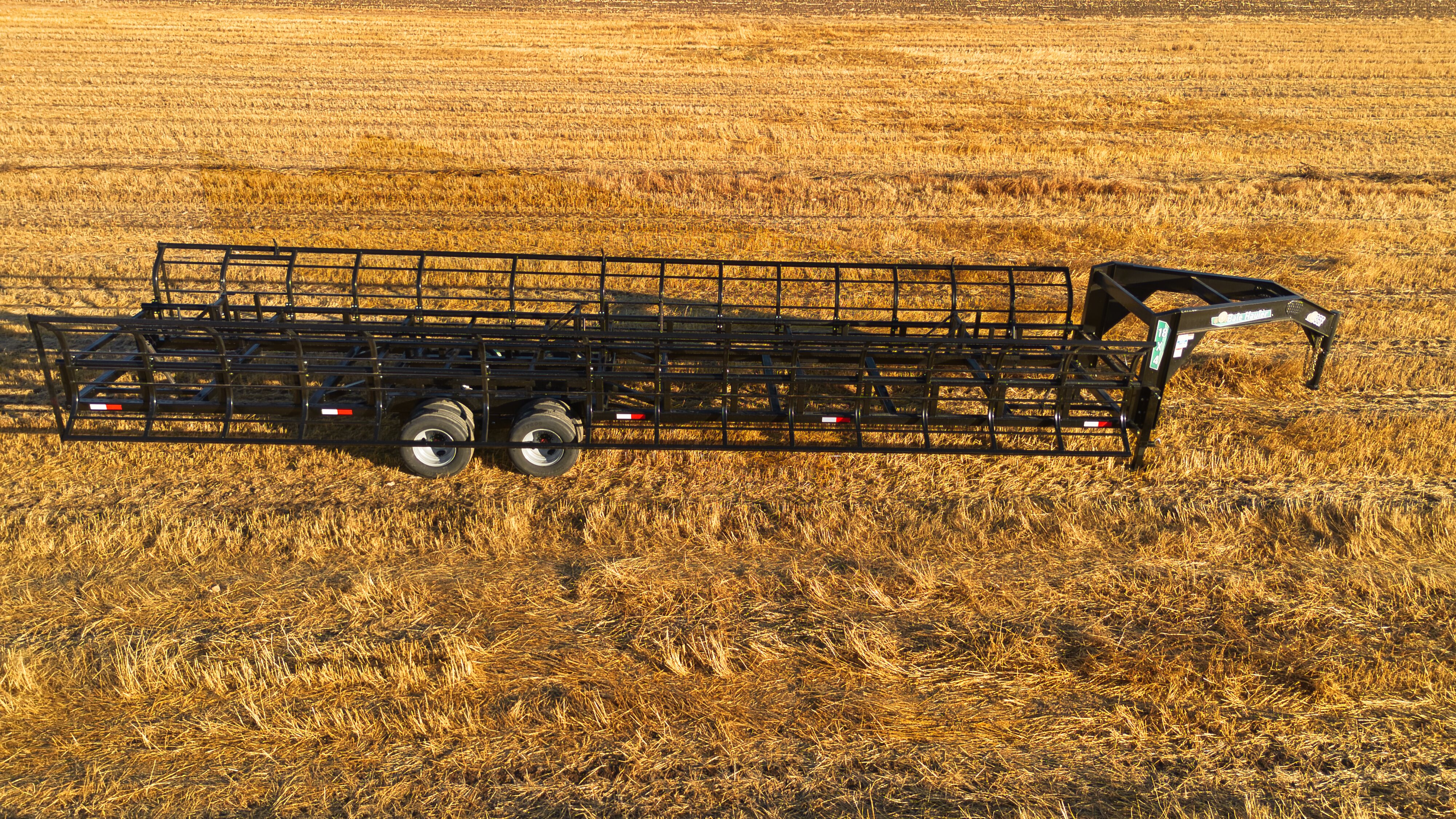

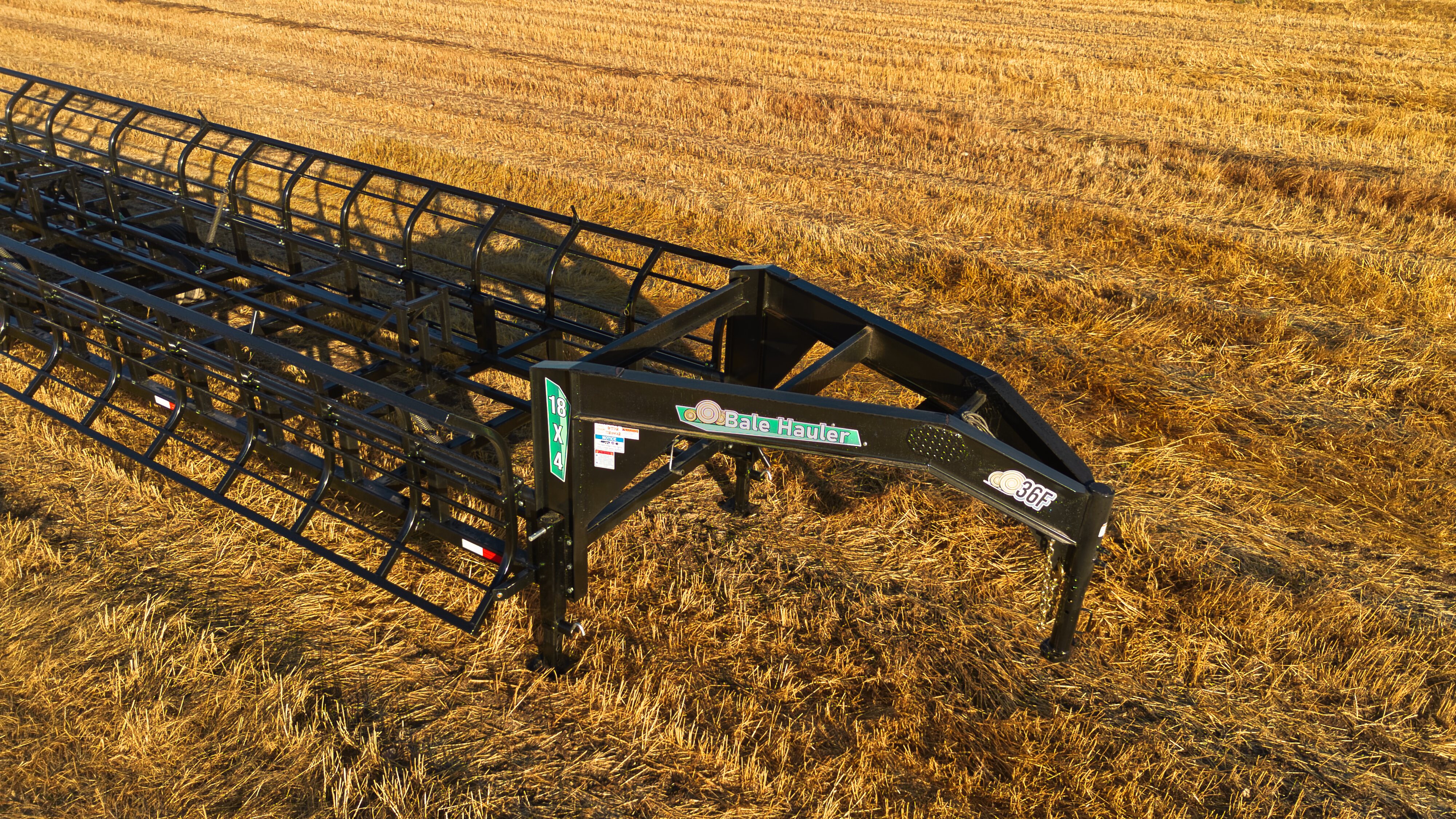

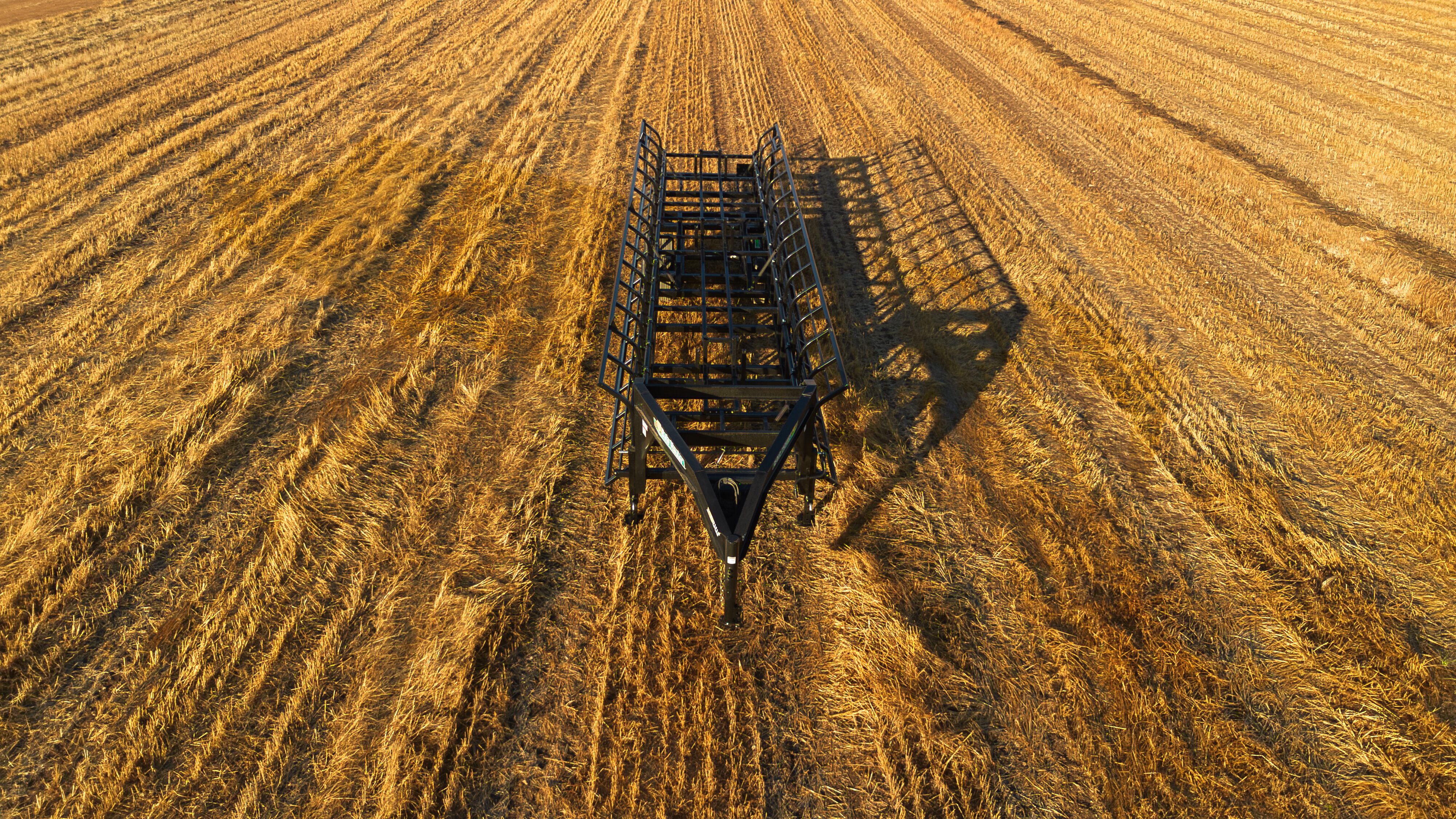

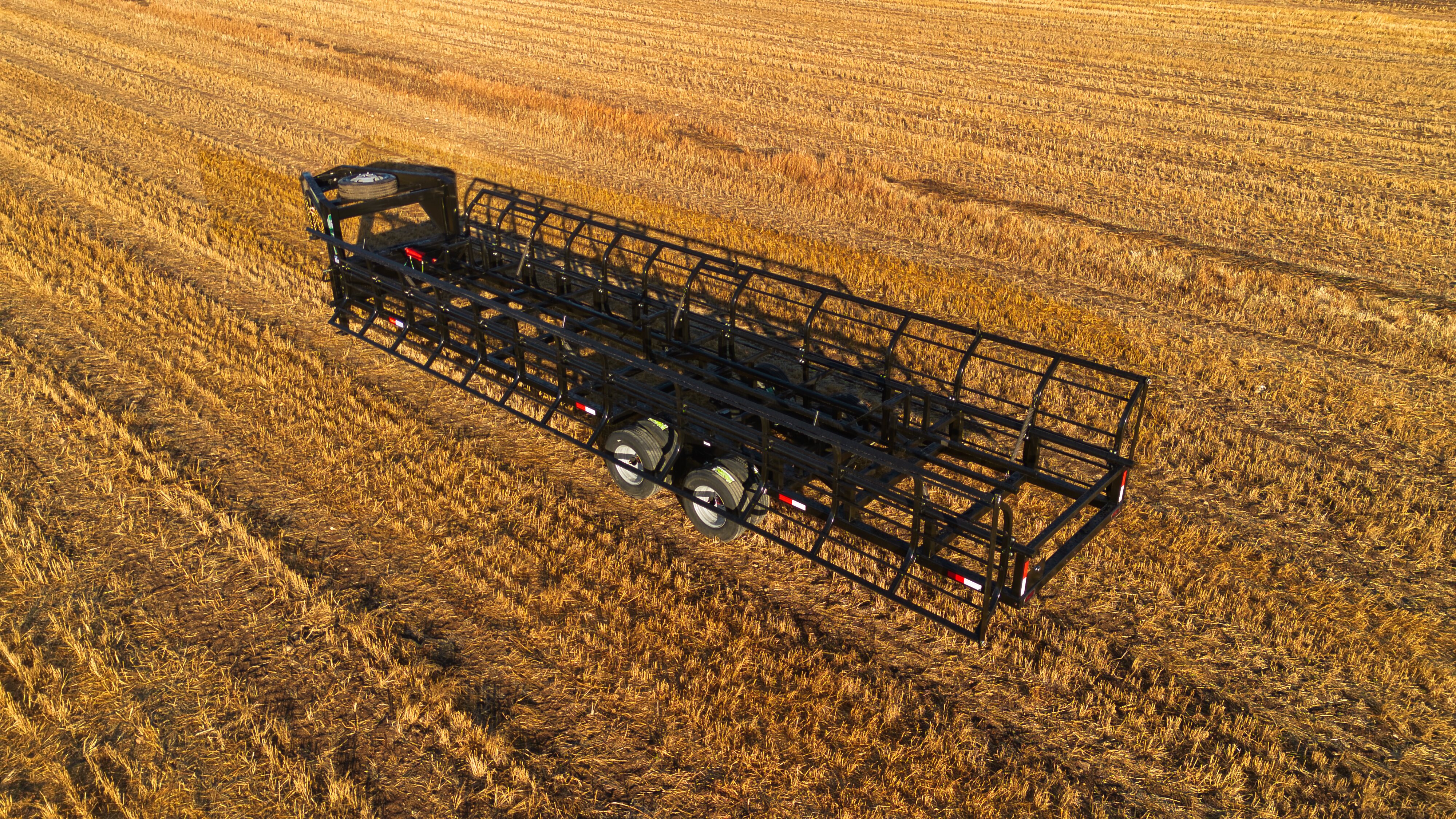

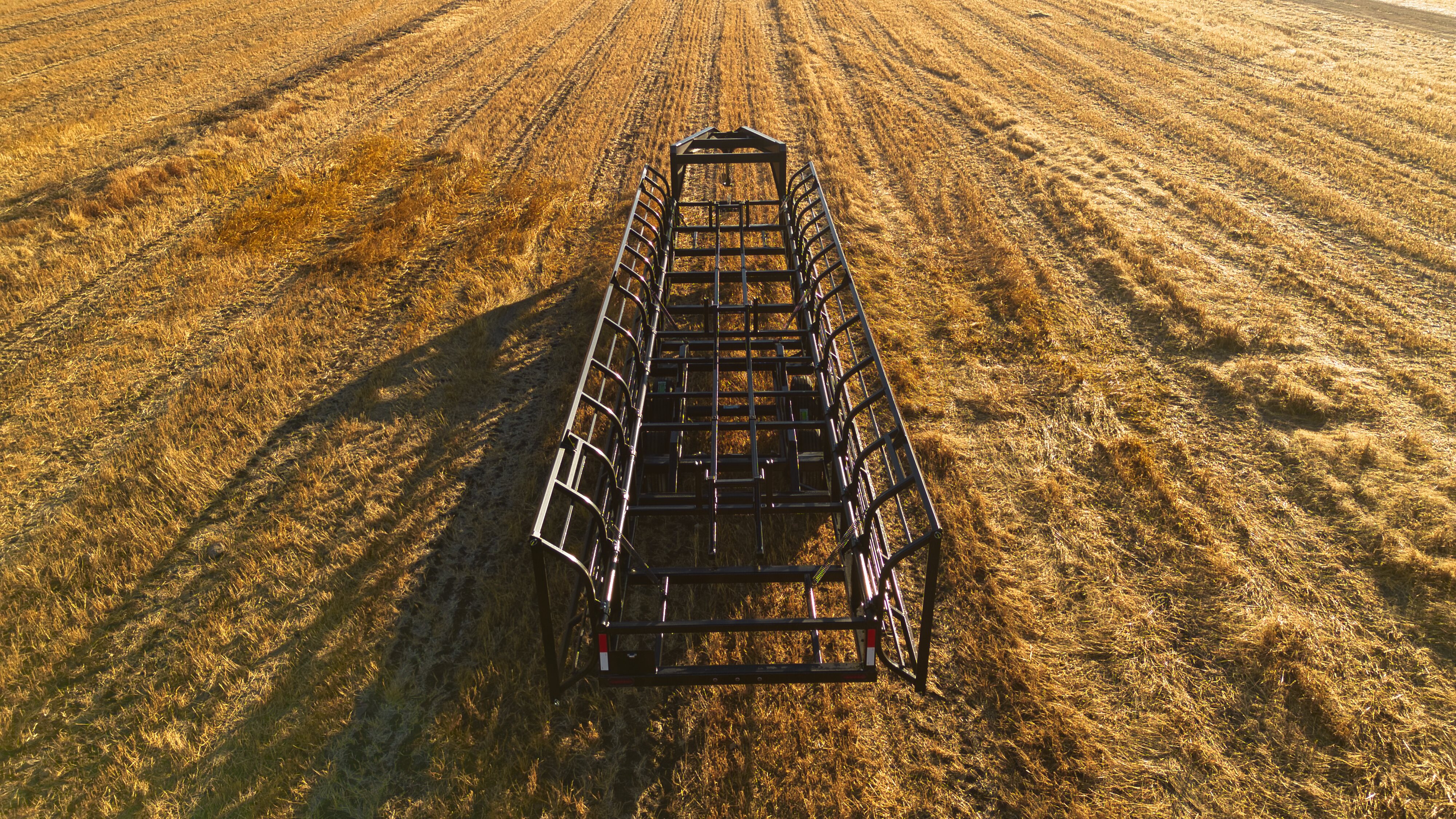

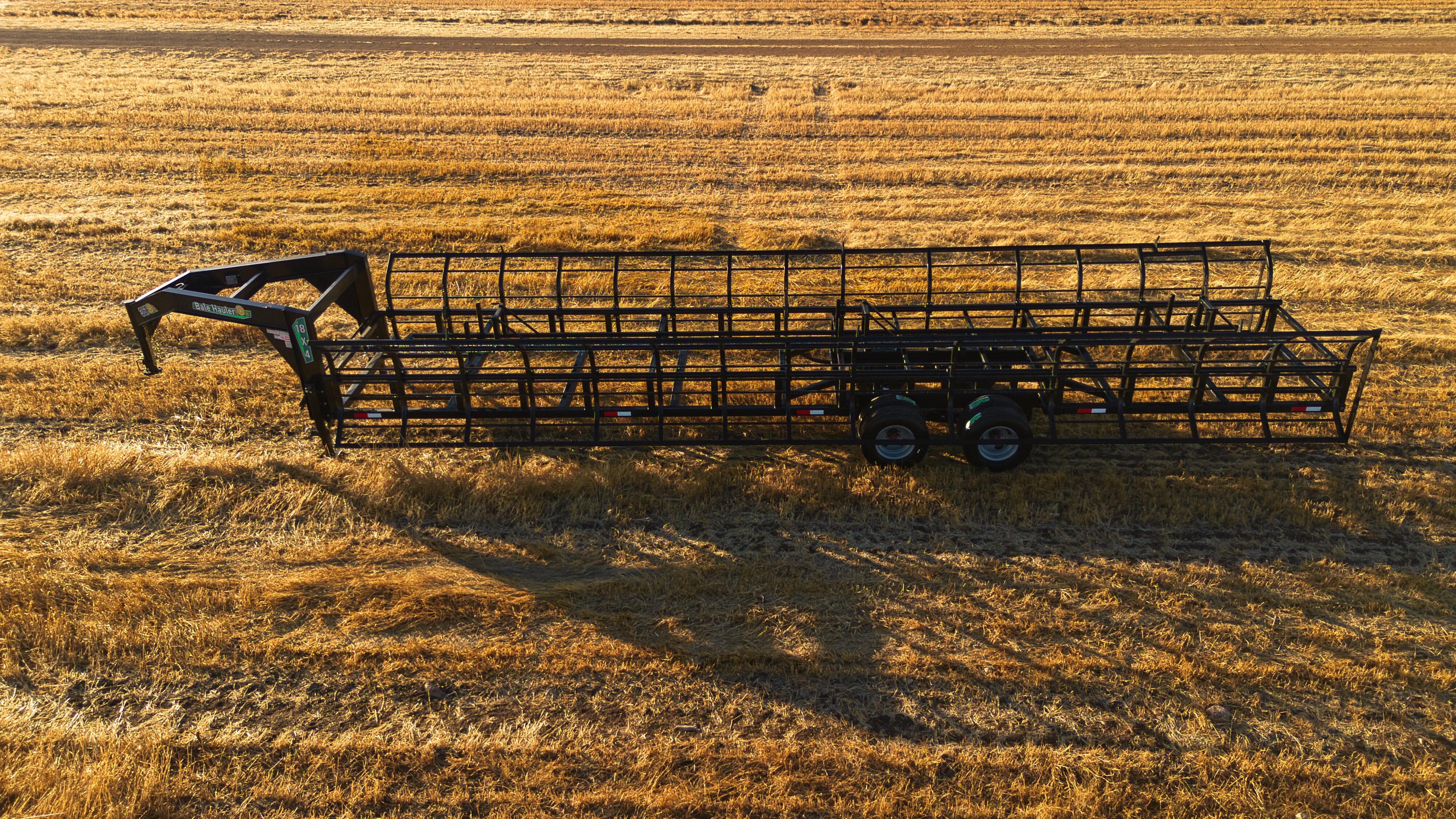

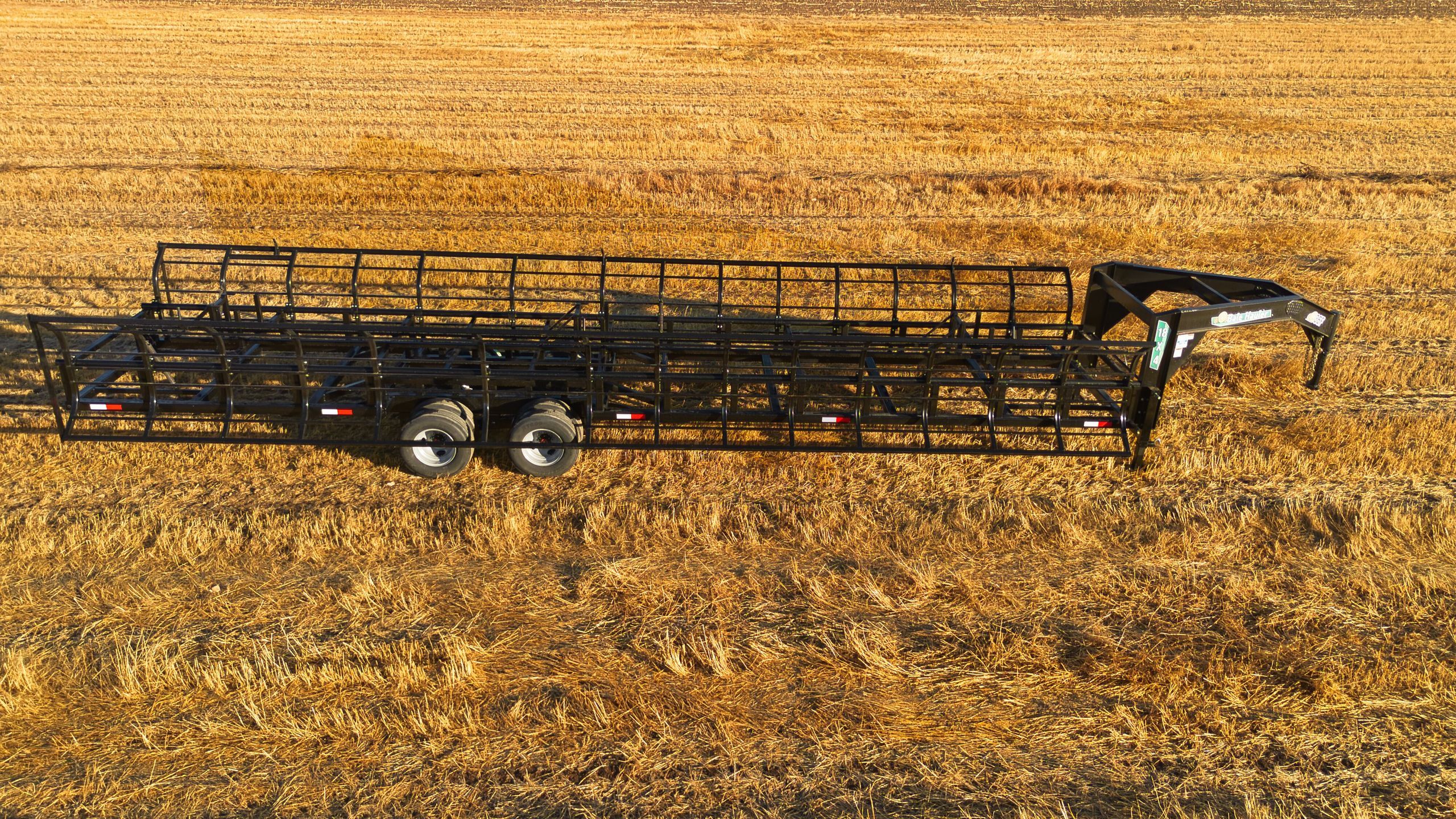

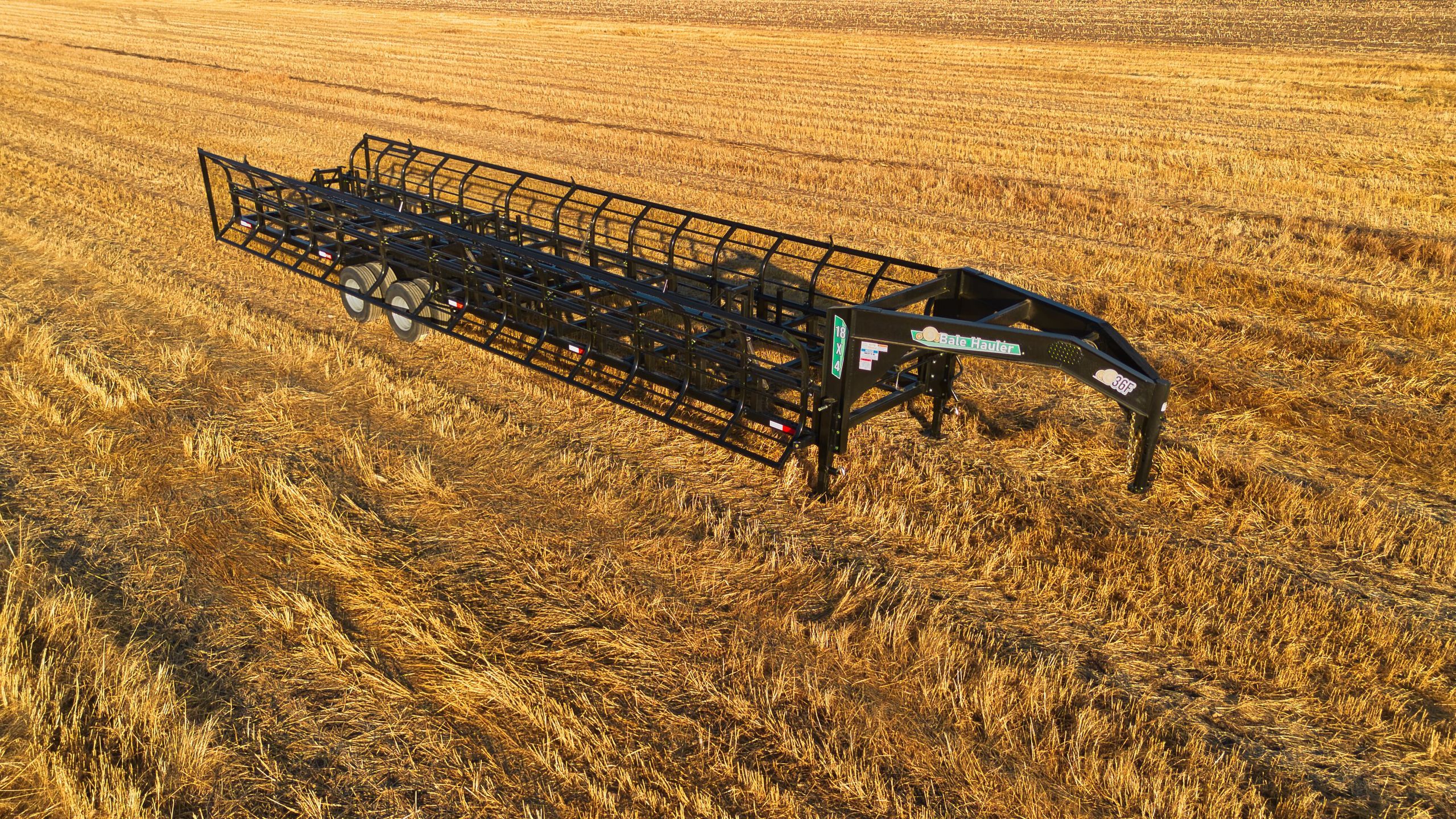

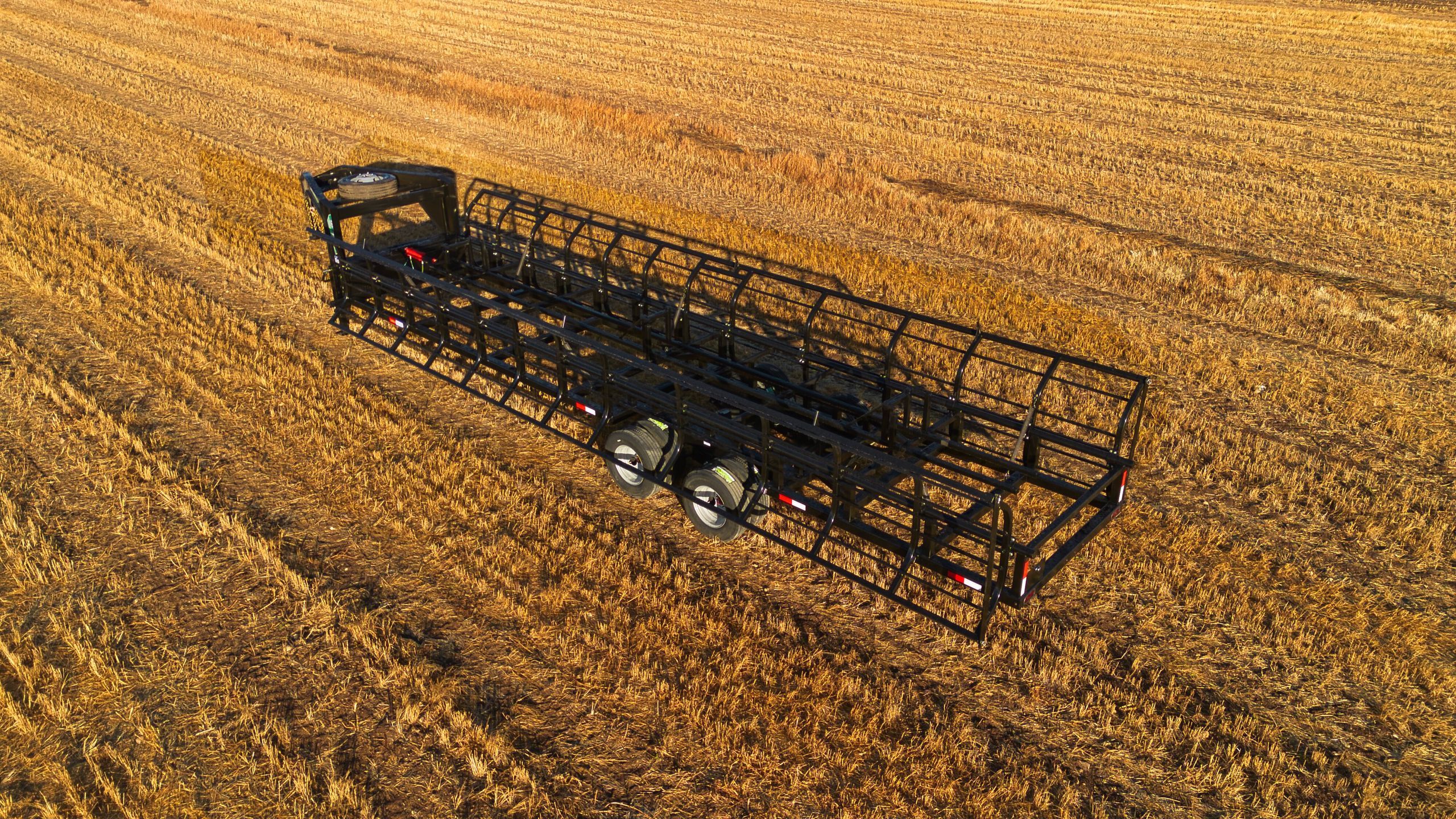

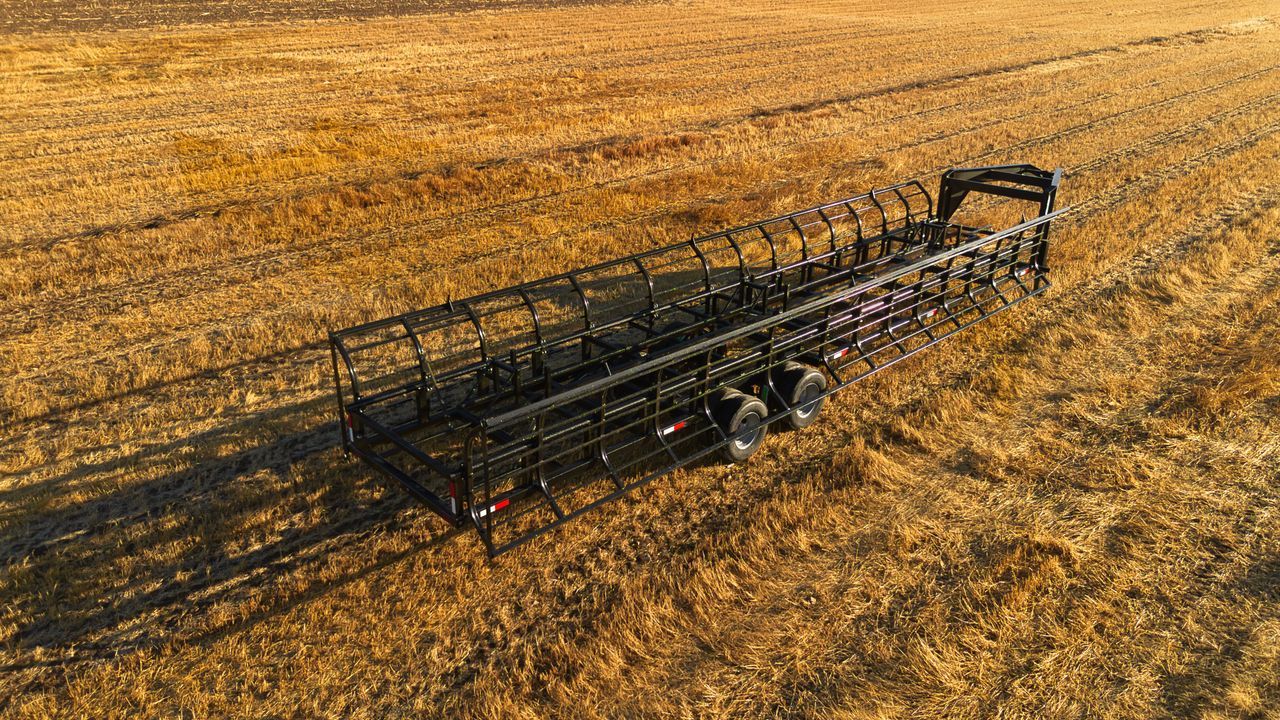

The 18X4 delivers capacity for 18 round bales in a 36 ft cradle, striking a balance between hauling power and maneuverability. Designed for medium-to-large ranches, it uses dual 10k axles with dual tires to ensure stability, even on uneven ground. Its powder-coated steel frame and wide stance give it a long working life in tough environments.
