Specifications

FeatureDescription
Header Capacity (ft)40
Total Length (ft)48 (including gooseneck, dolly, and telescopic hitch)
Overall Width (in)95
Frame MaterialSteel

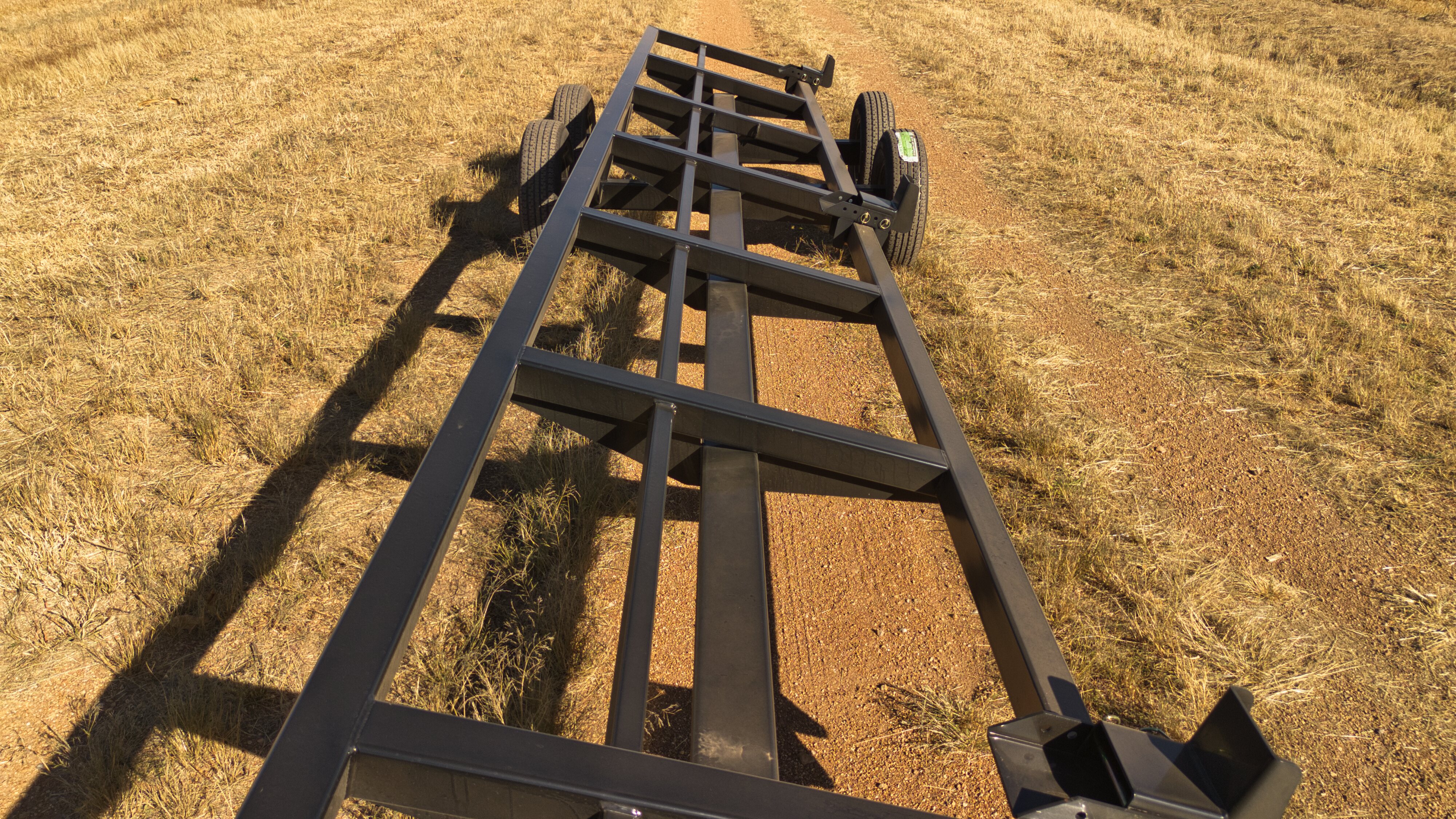

Main Frame Size4x4
Incline Frame DesignIncline
Number of Brackets4
Bracket TypeAdjustable
Axle TypeFixed
Axle Quantity2
Axle Rating (lbs)7,000 each

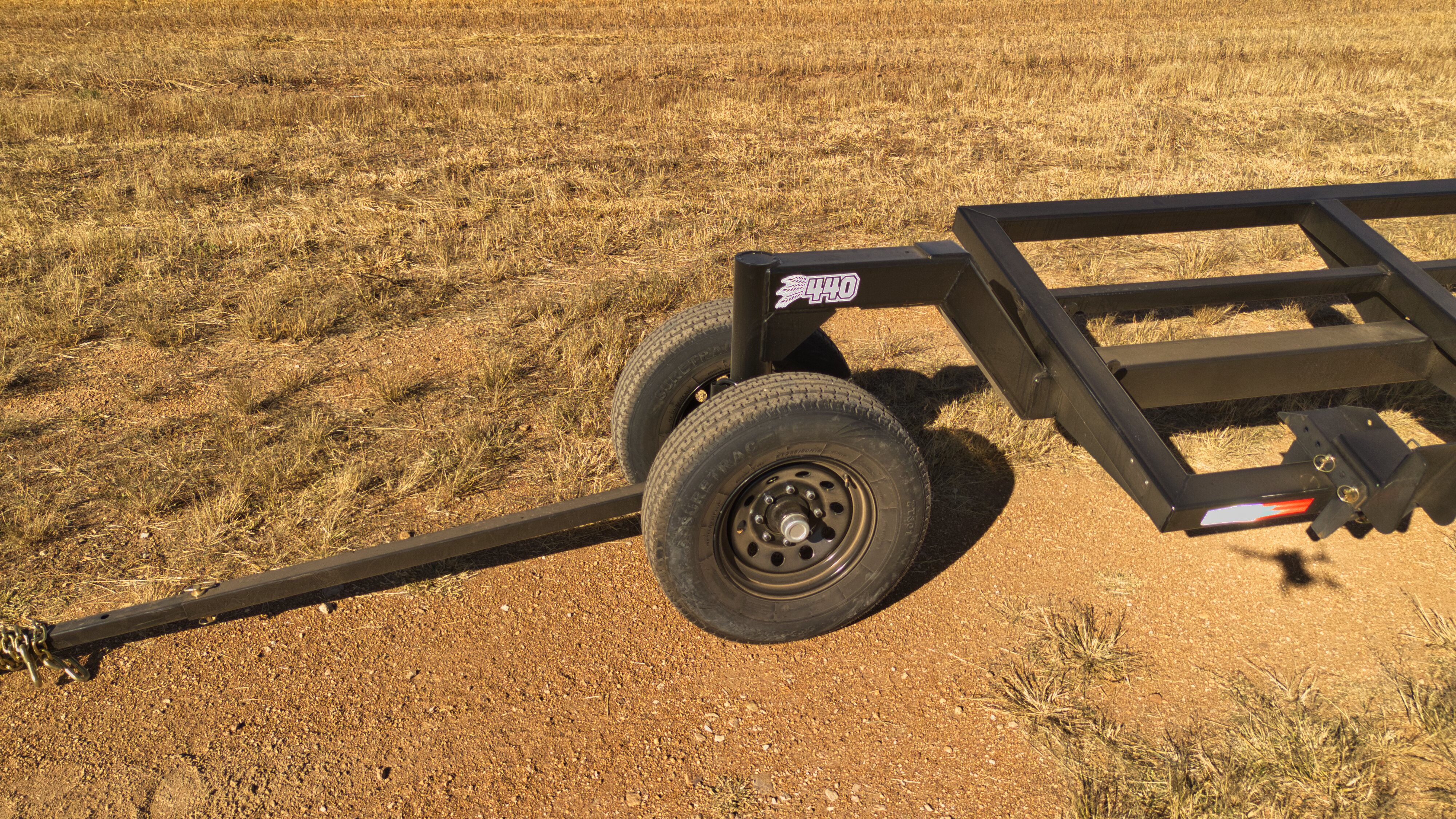

Dolly TypeSwivel front dolly
Dolly Axle Rating (lbs)7,000
Wheel / Tire SizeST235/80R16
Tire Ply Rating10-ply (16-ply optional)
BrakesNone
LightsNone
Shipping Weight lbs3,586 lbs
GVWR (lbs)21,000

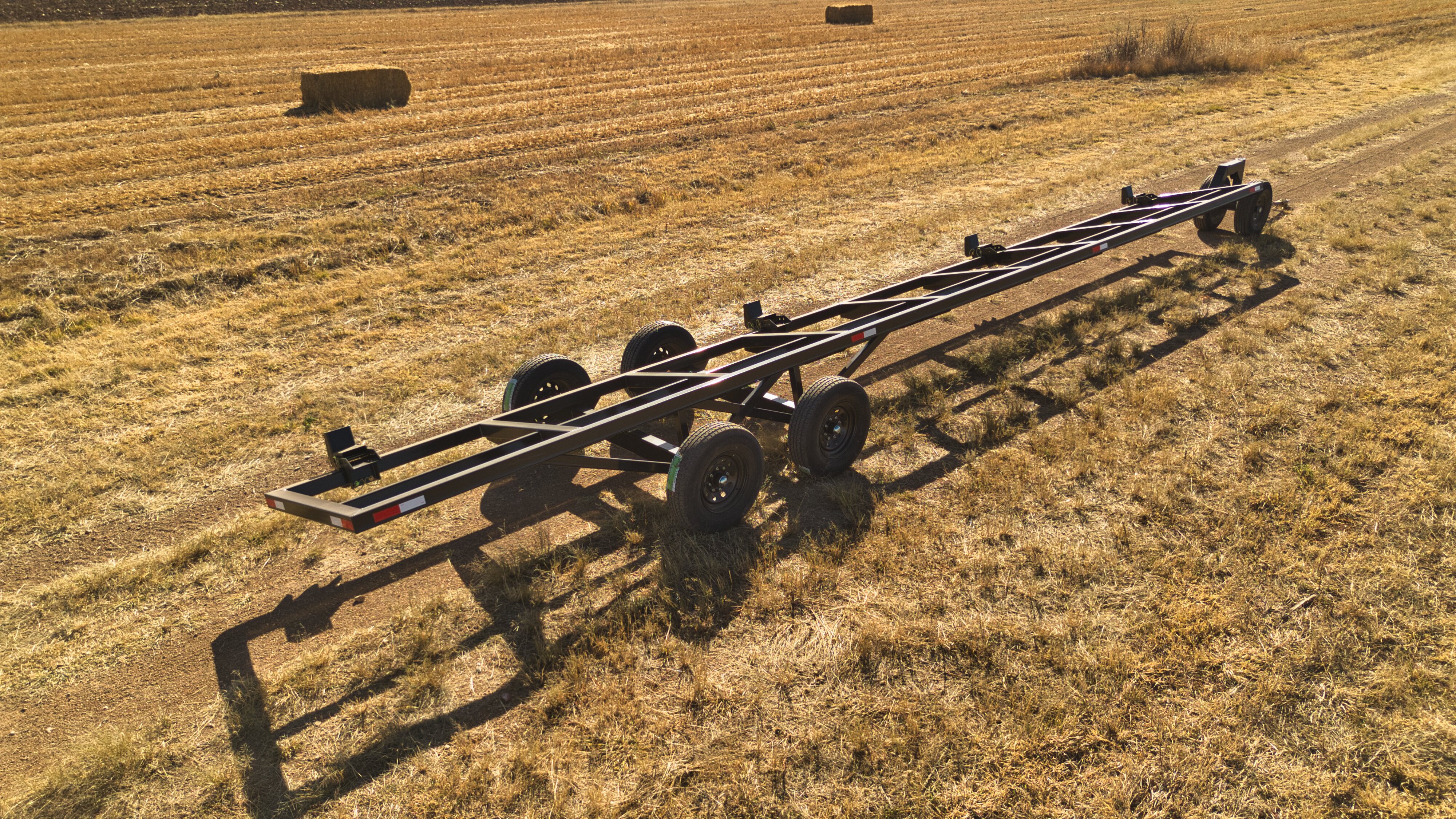

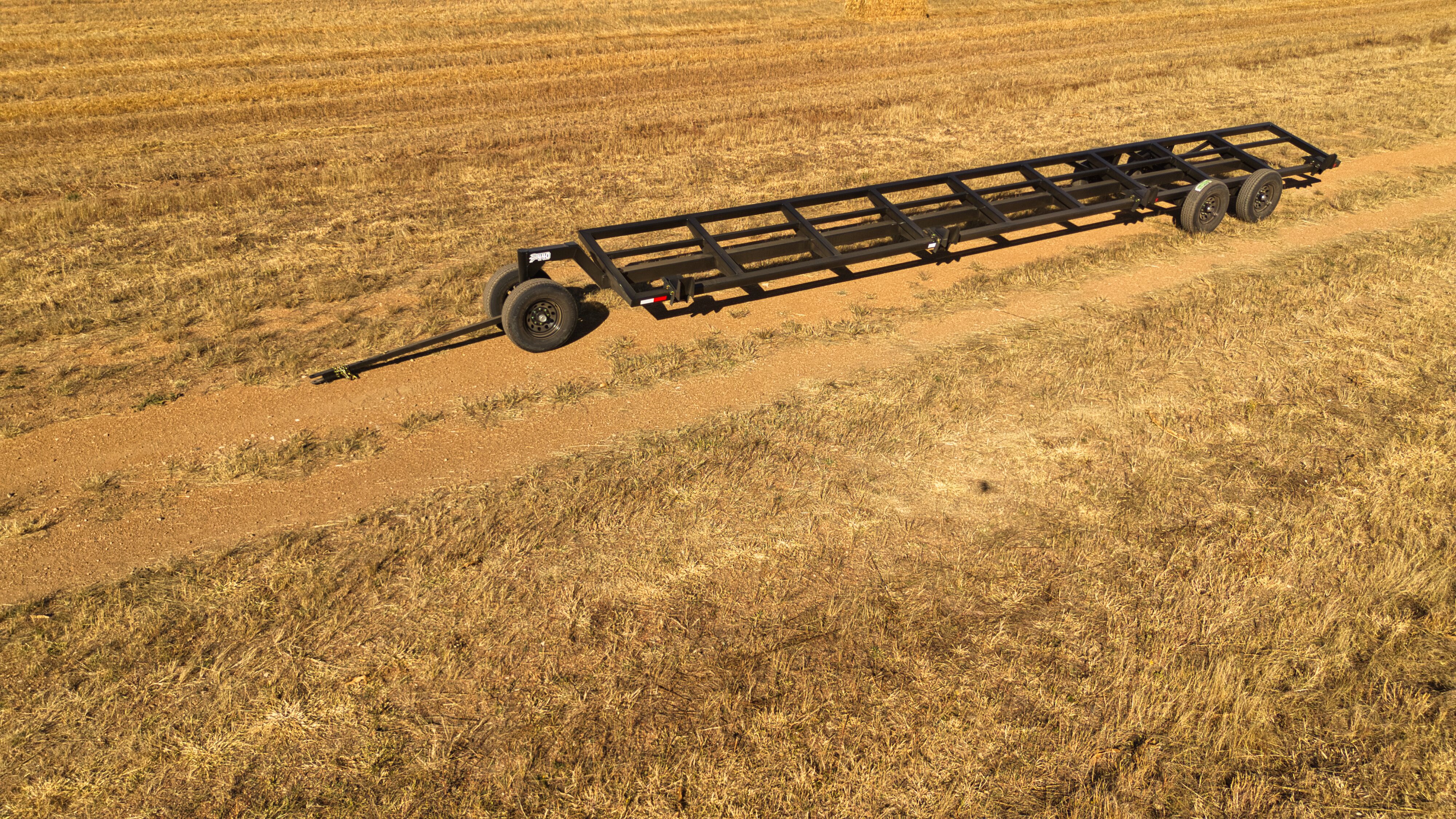

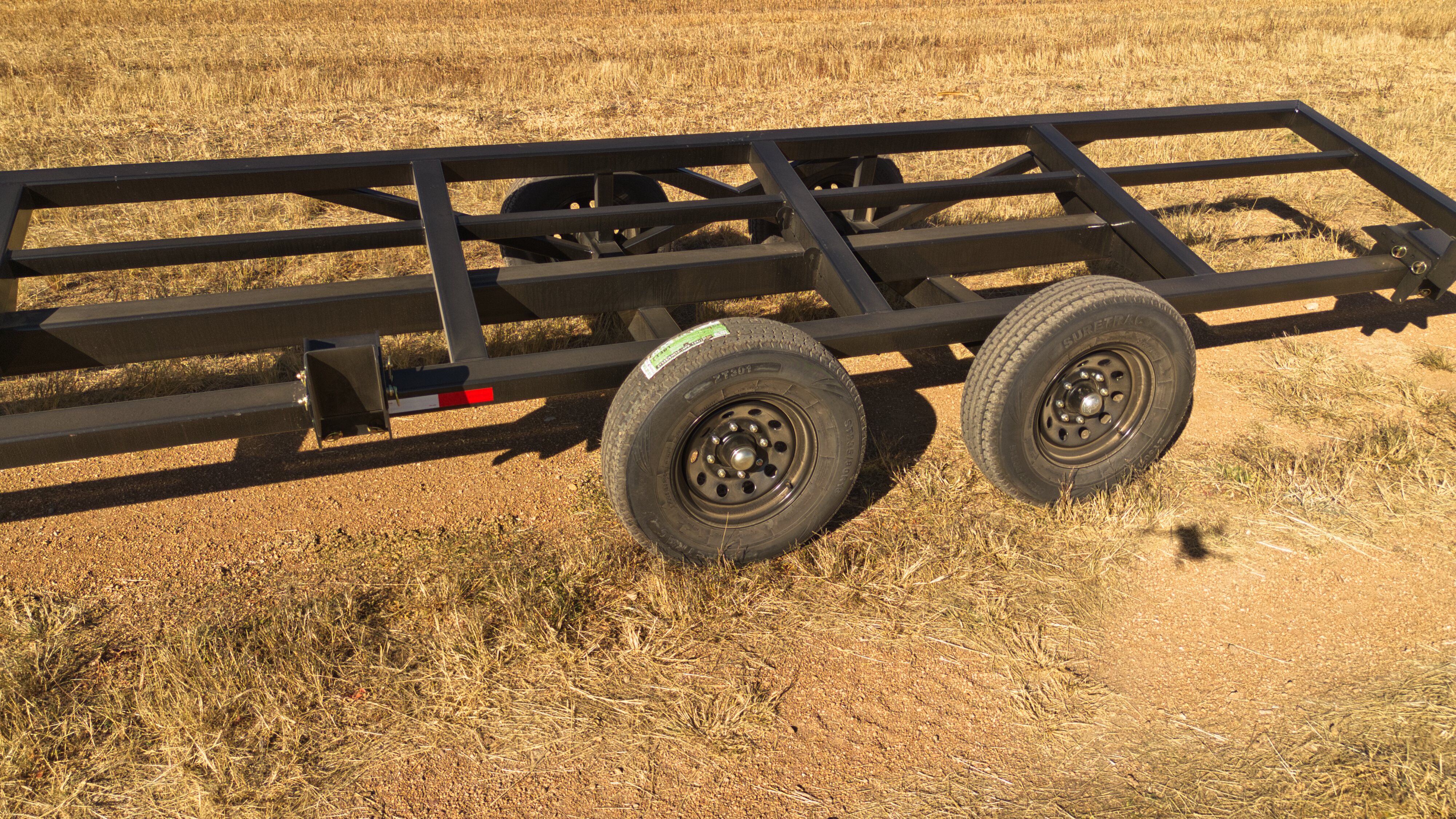

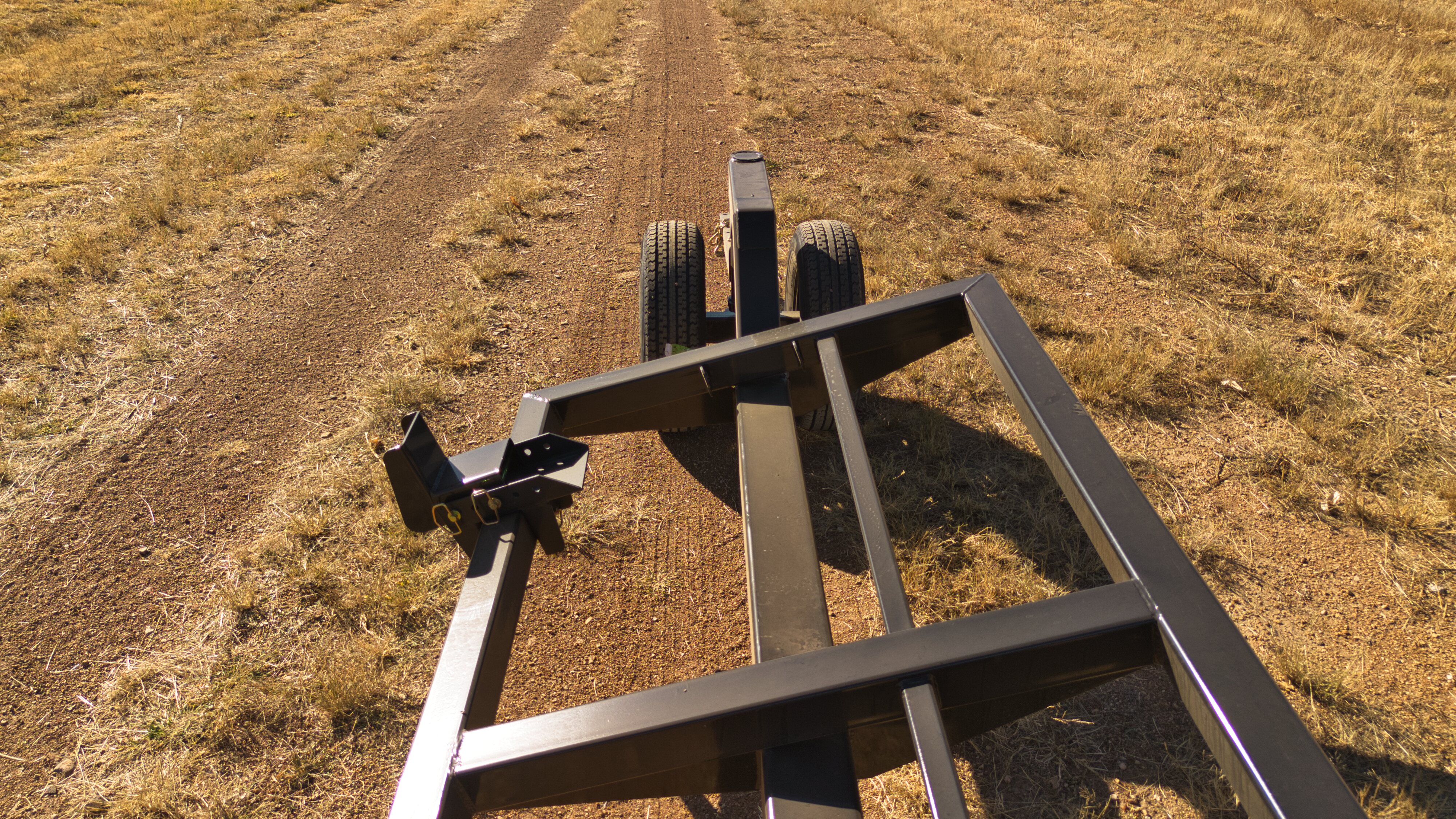

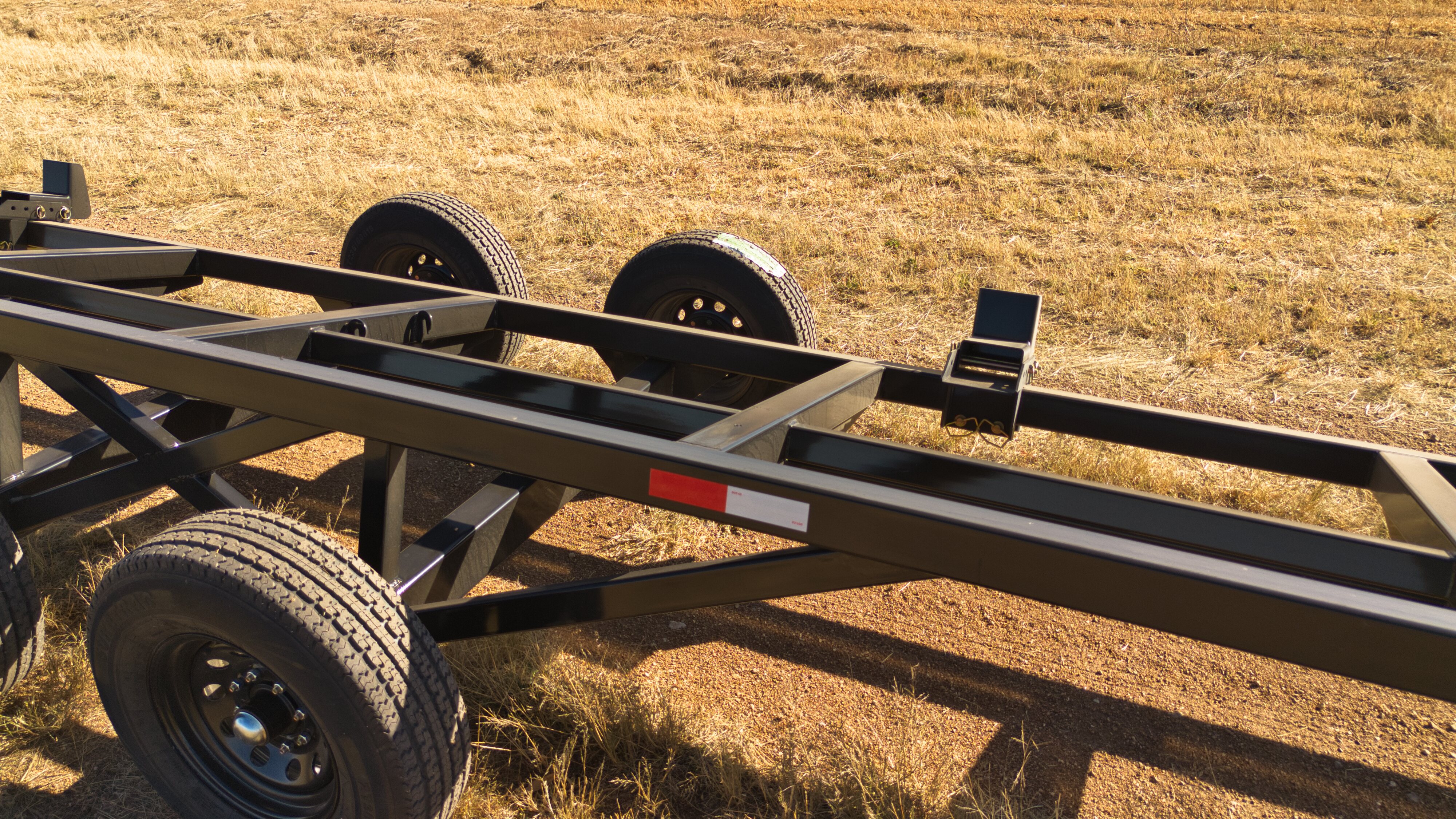

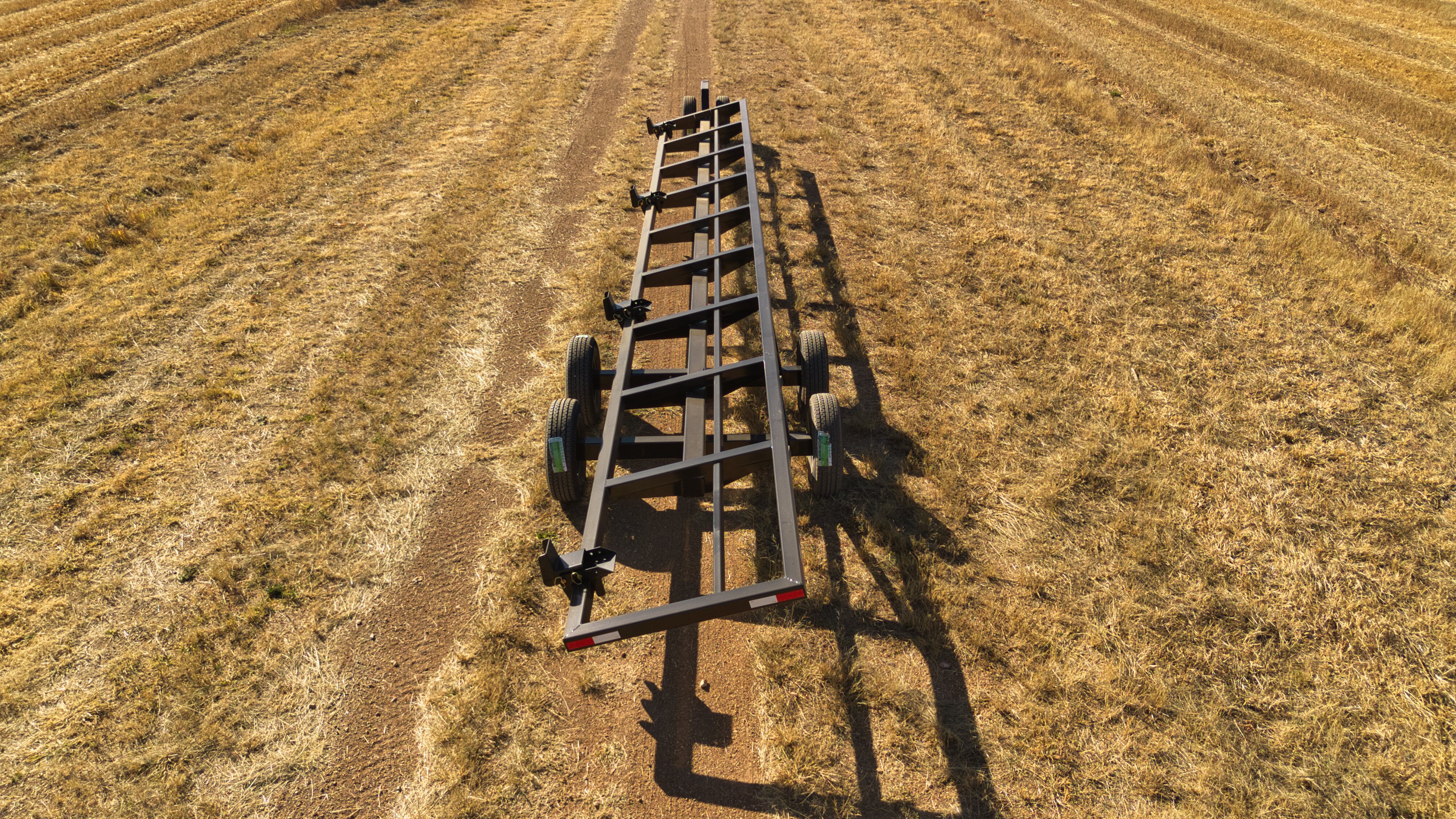

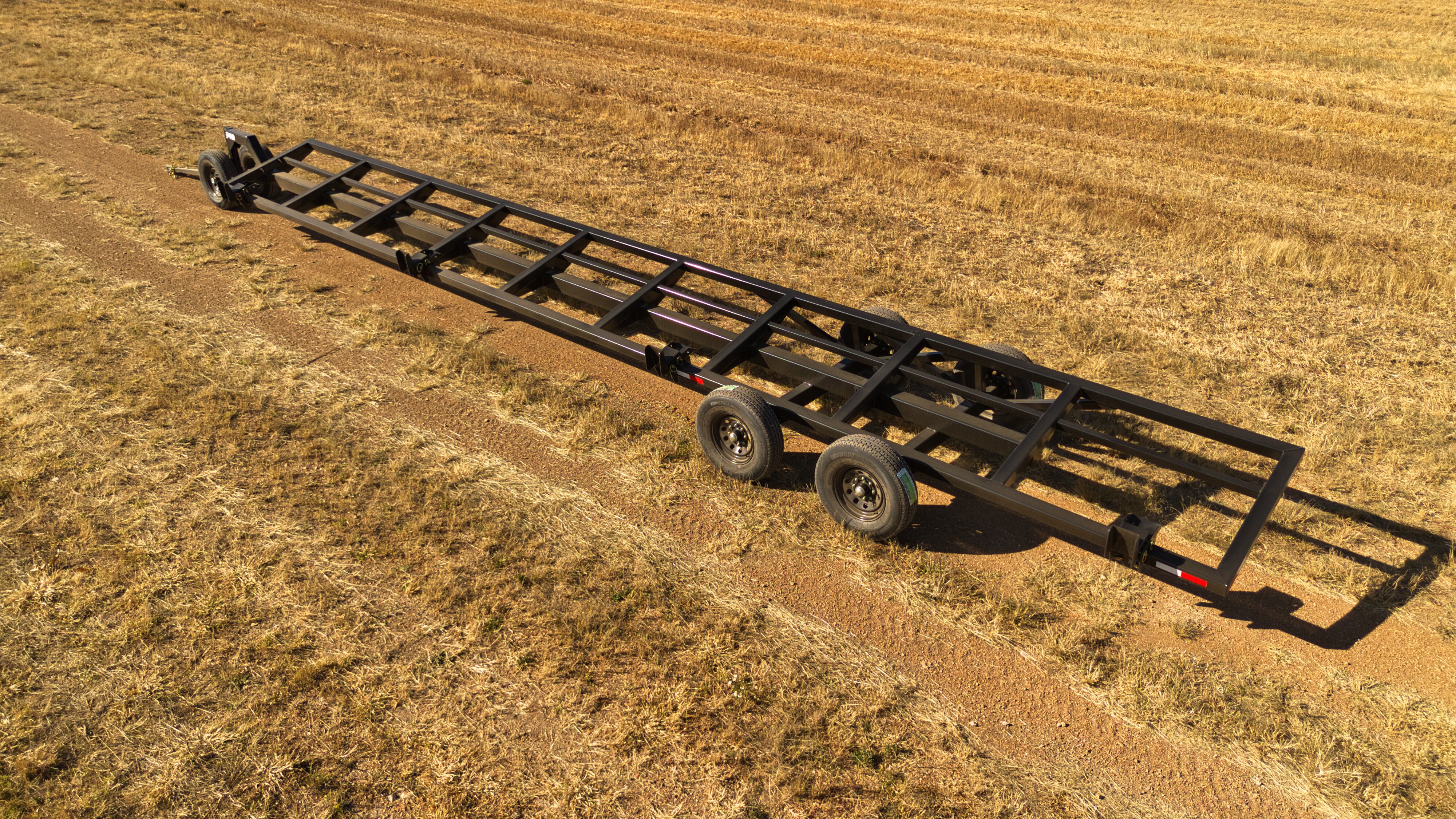

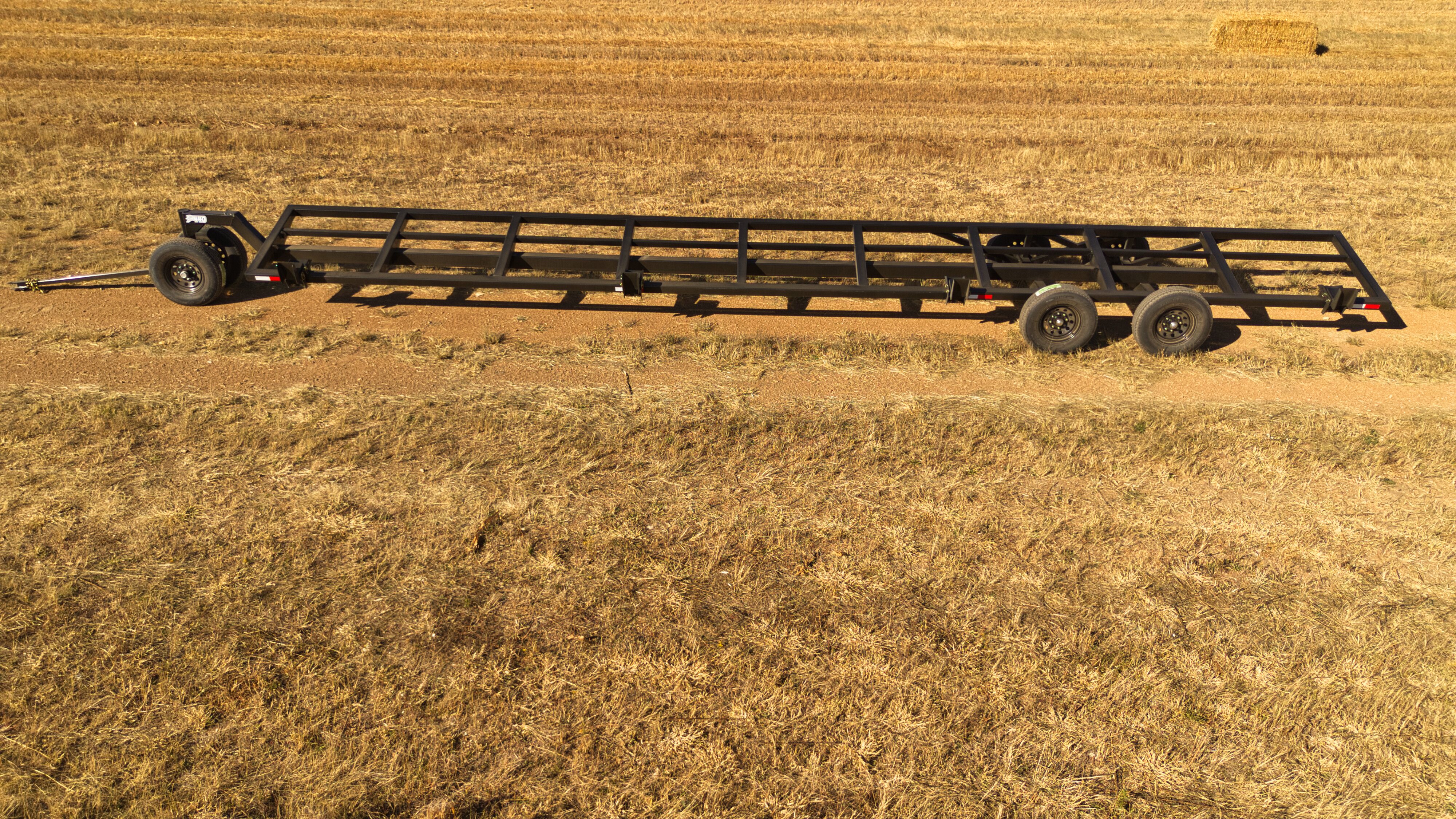

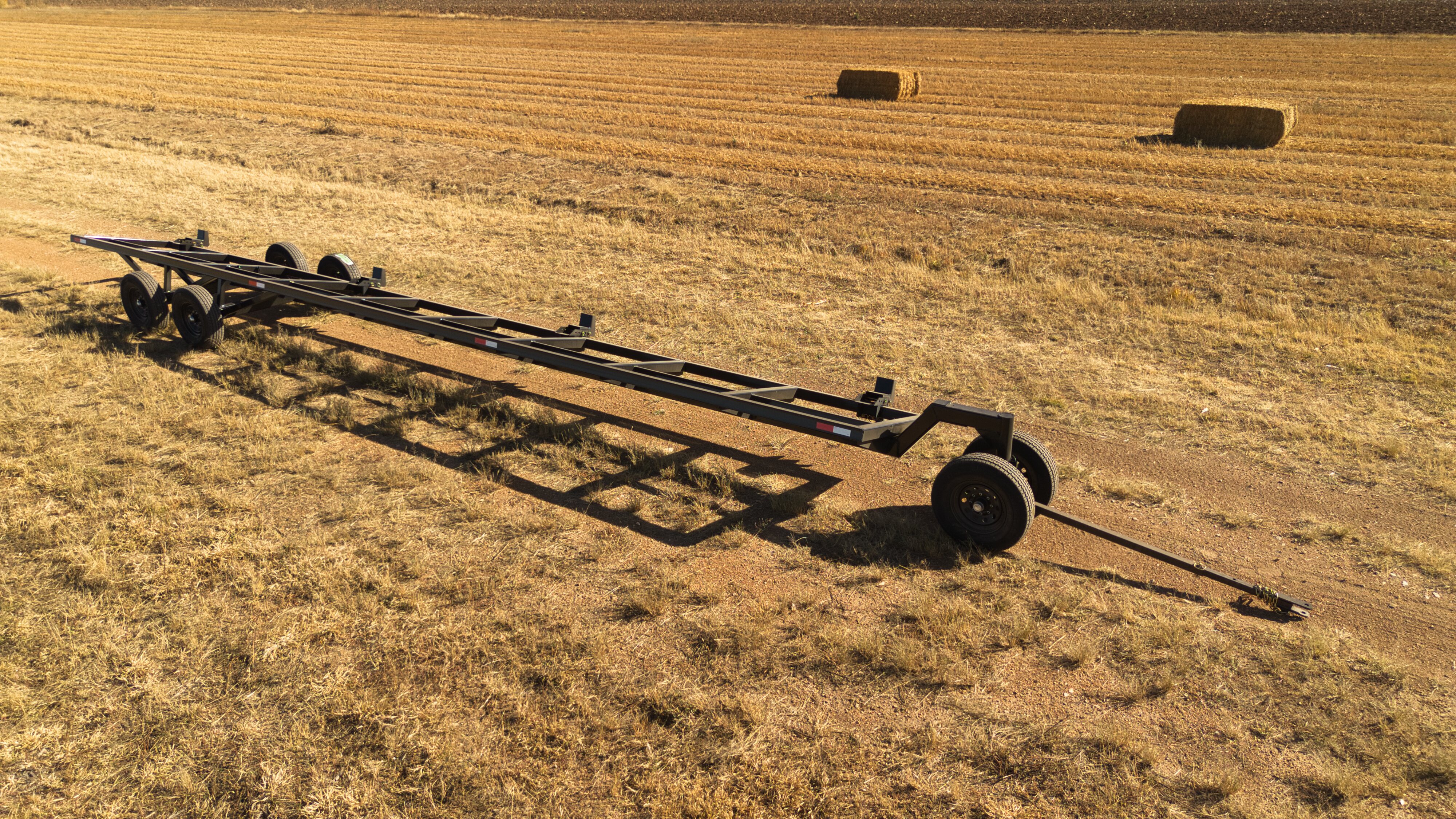

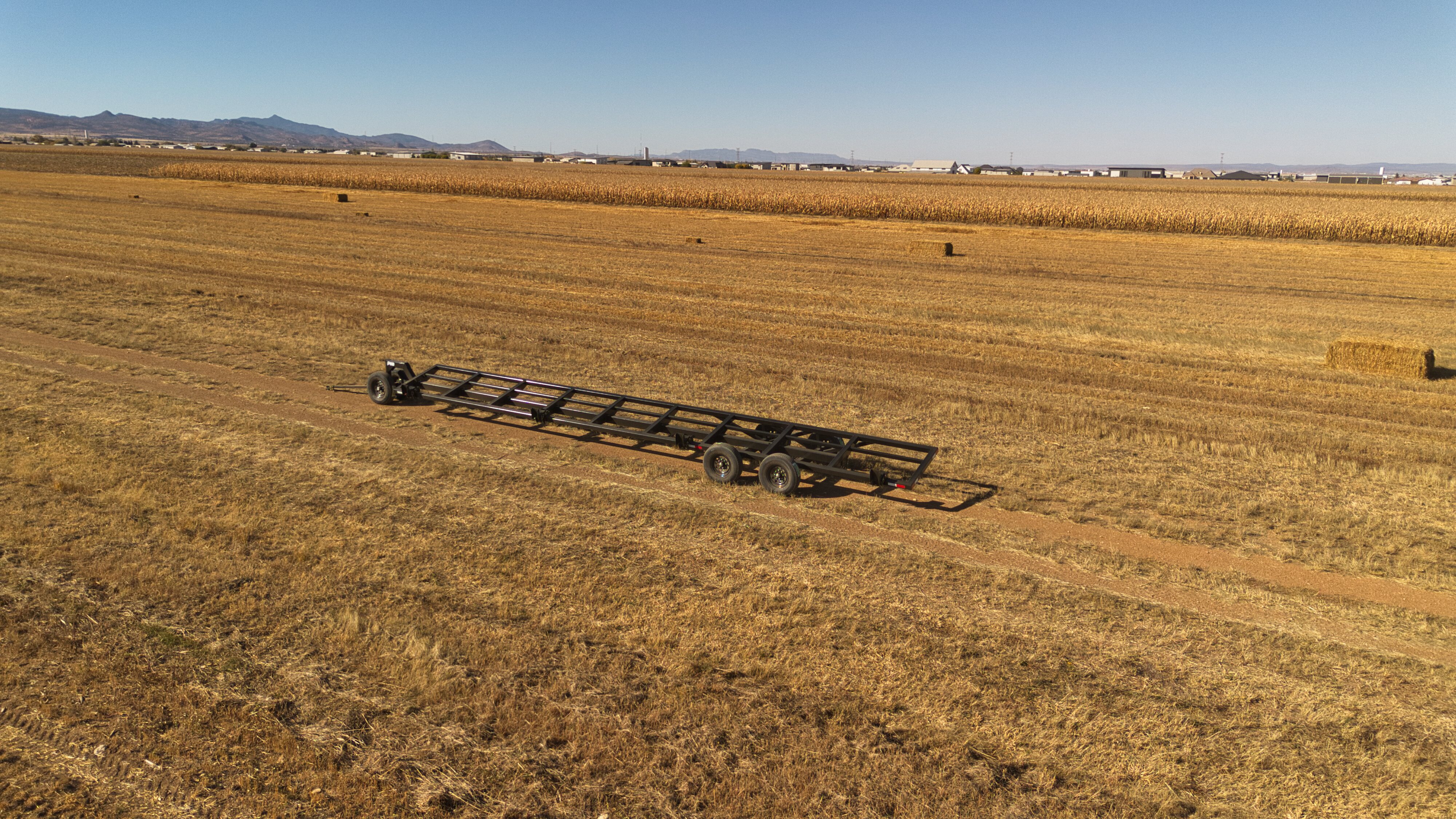

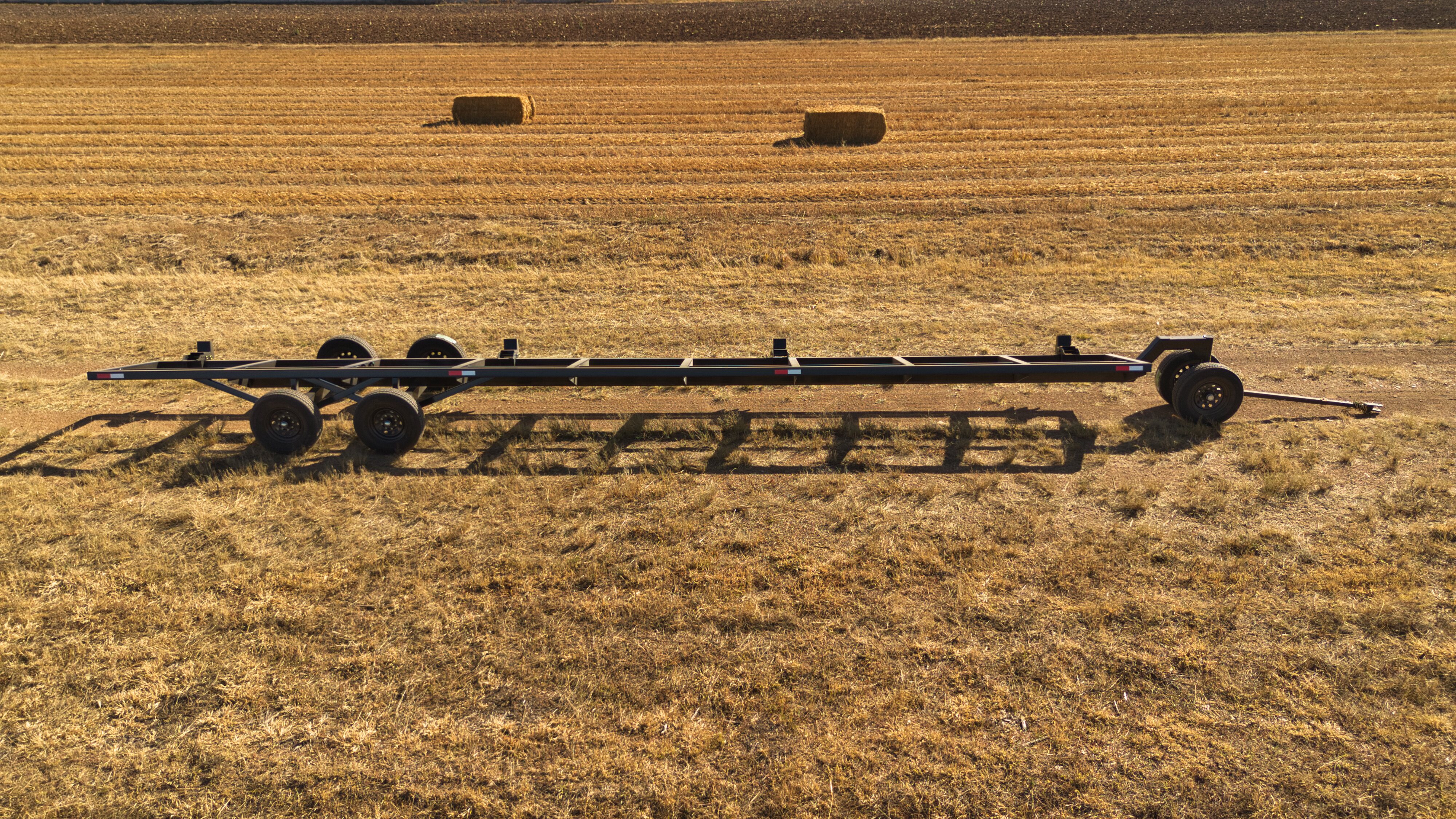

The 440 is built for 40’ headers and gives you a stable, tandem-axle trailer in a simple, fixed-axle design. The 4x4 incline frame with multiple crossmembers and four adjustable brackets keeps the header supported during transport so you’re not stressing the feeder house or risk bending the cutterbar. Operators appreciate the low-maintenance layout: swivel dolly, telescopic hitch, adjustable brackets, and no lights or brake system to maintain. It’s ideal for field-to-field moves and shorter road hauls where simplicity is an asset.

×
