Specifications
| Feature | Description |
|---|---|
| Header Capacity (ft) | 42 |
| Total Length (ft) | 50.5 (including gooseneck, dolly, and telescopic hitch) |
| Overall Width (in) | 95 |
| Frame Material | Steel |
| Main Frame Size | 8x4 + adjustable 4x4 |
| Incline Frame Design | Adjustable incline |
| Number of Brackets | 4 |
| Bracket Type | Adjustable |
| Axle Type | Torsion |
| Axle Quantity | 2 |
| Axle Rating (lbs) | 6,000 each |

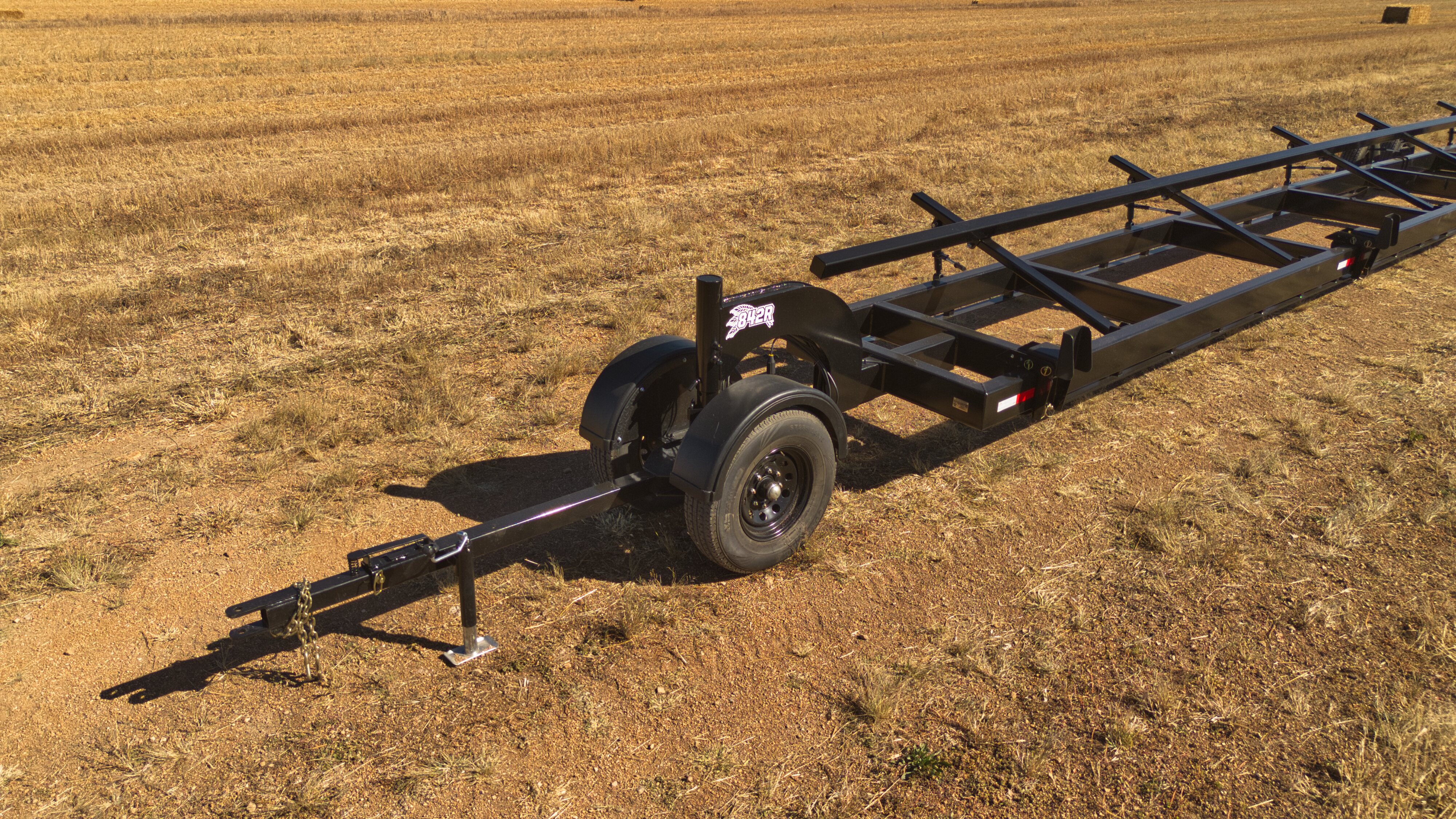

| Dolly Type | Swivel front dolly with plastic fenders and 6.5'–10.5' telescopic hitch |
| Dolly Axle Rating (lbs) | 7,000 |
| Suspension Type | Torsion |
| Wheel / Tire Size | ST235/80R16 |
| Tire Ply Rating | 10-ply (16-ply optional) |
| Brakes | Yes (electric) |
| Brake Axle(s) | 1 axle |
| Lights | Rear lights |
| Shipping Weight lbs | 5,060 lbs |
| GVWR (lbs) | 19,000 |

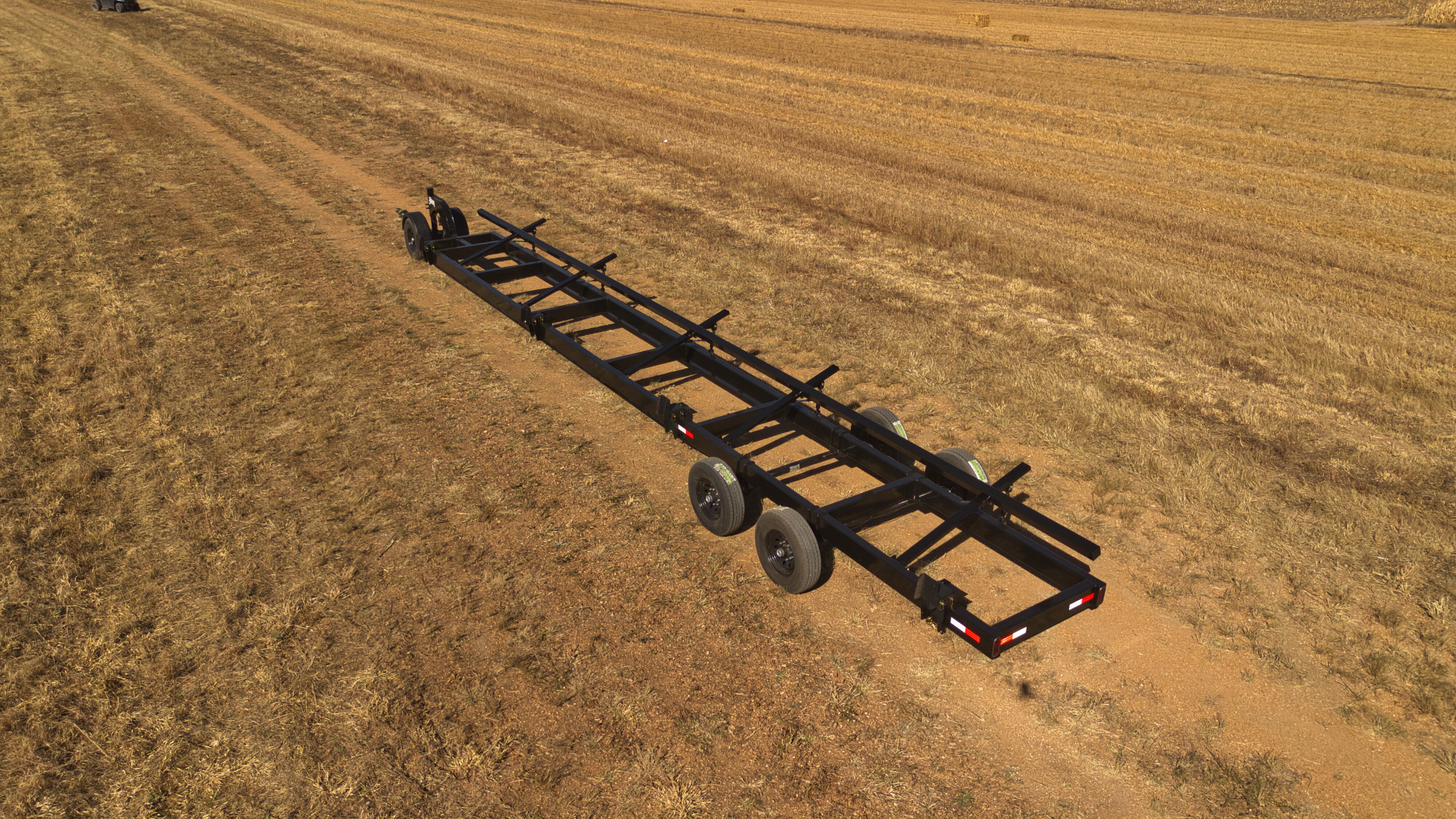

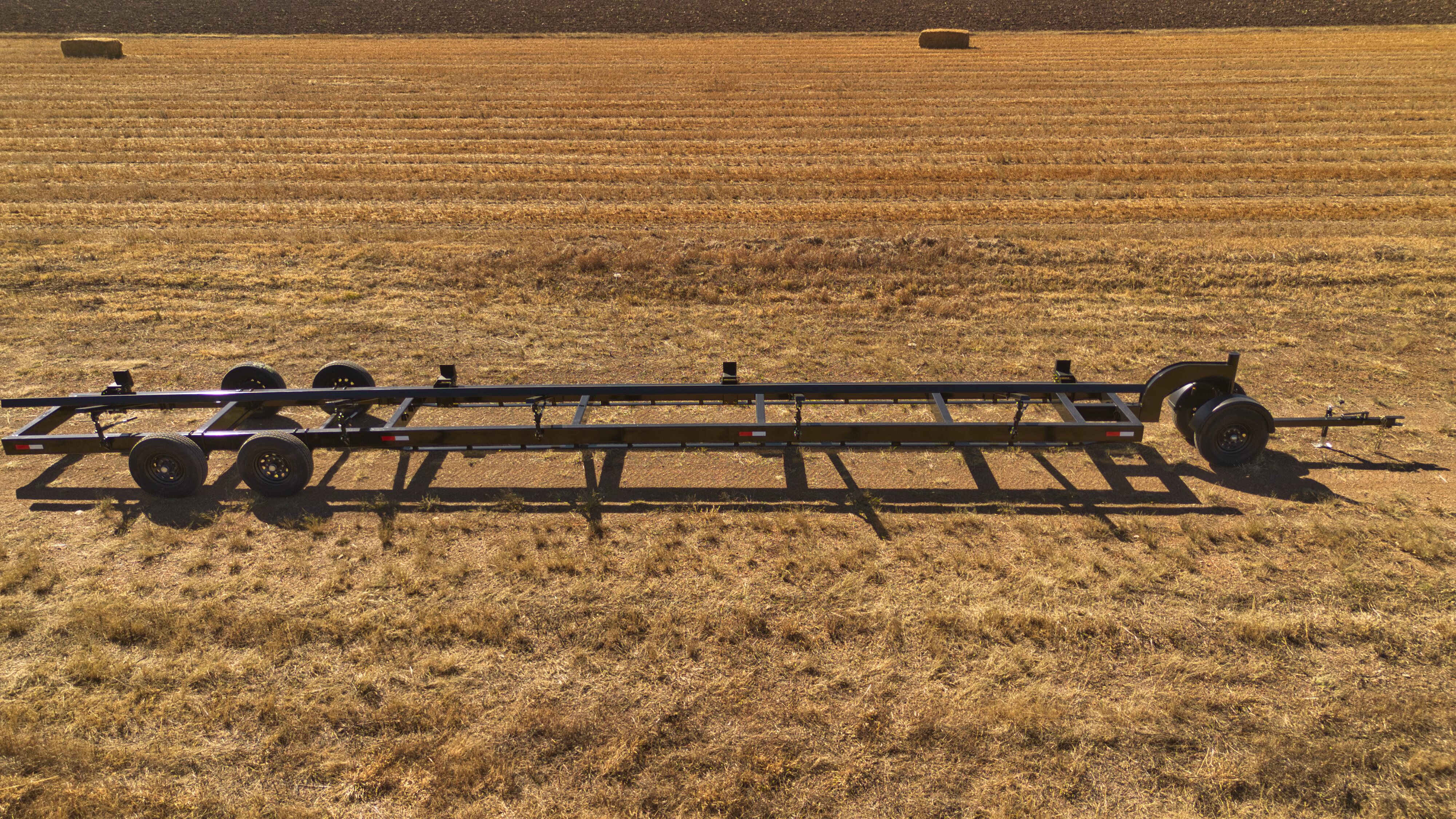

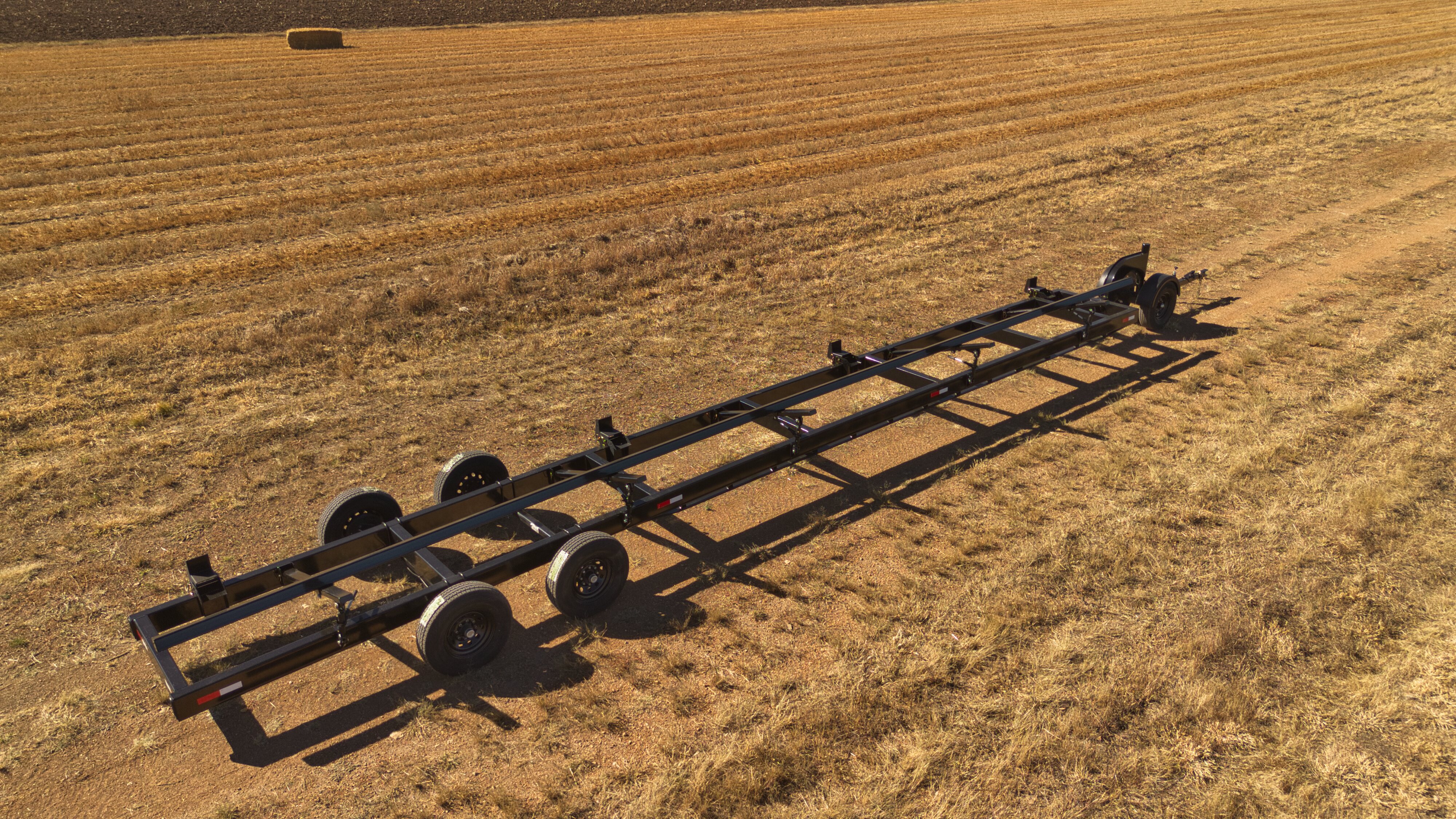

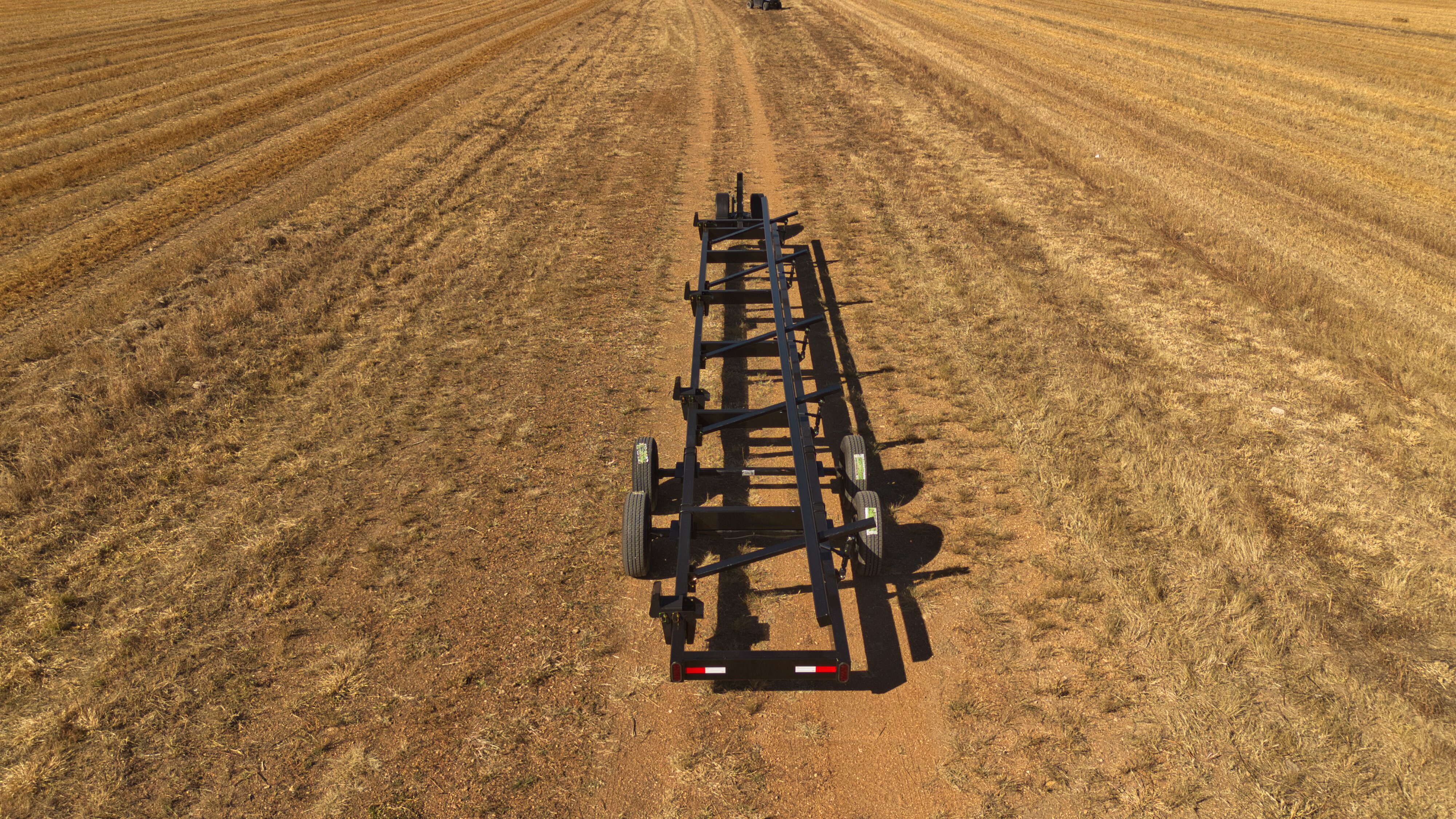

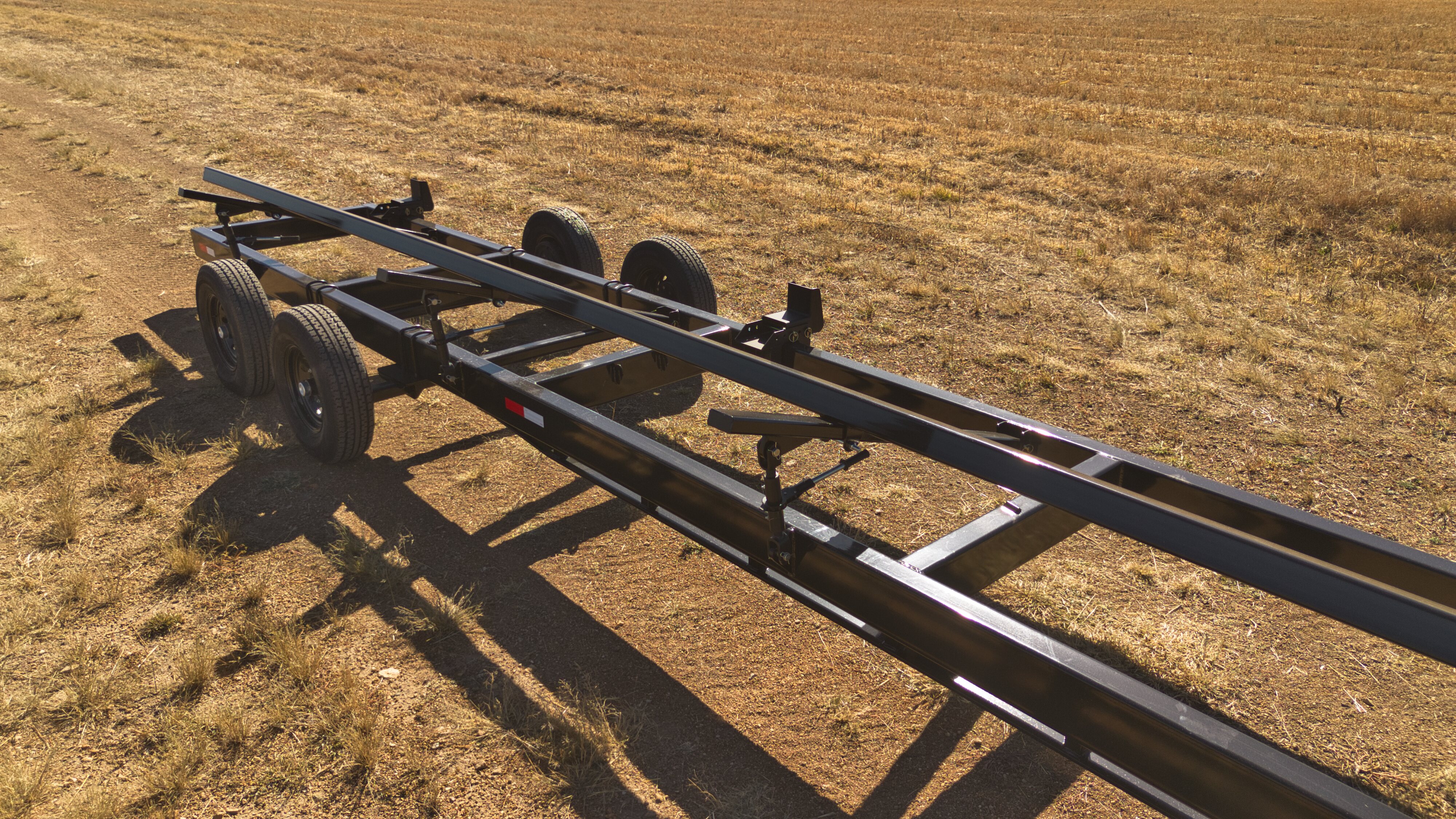

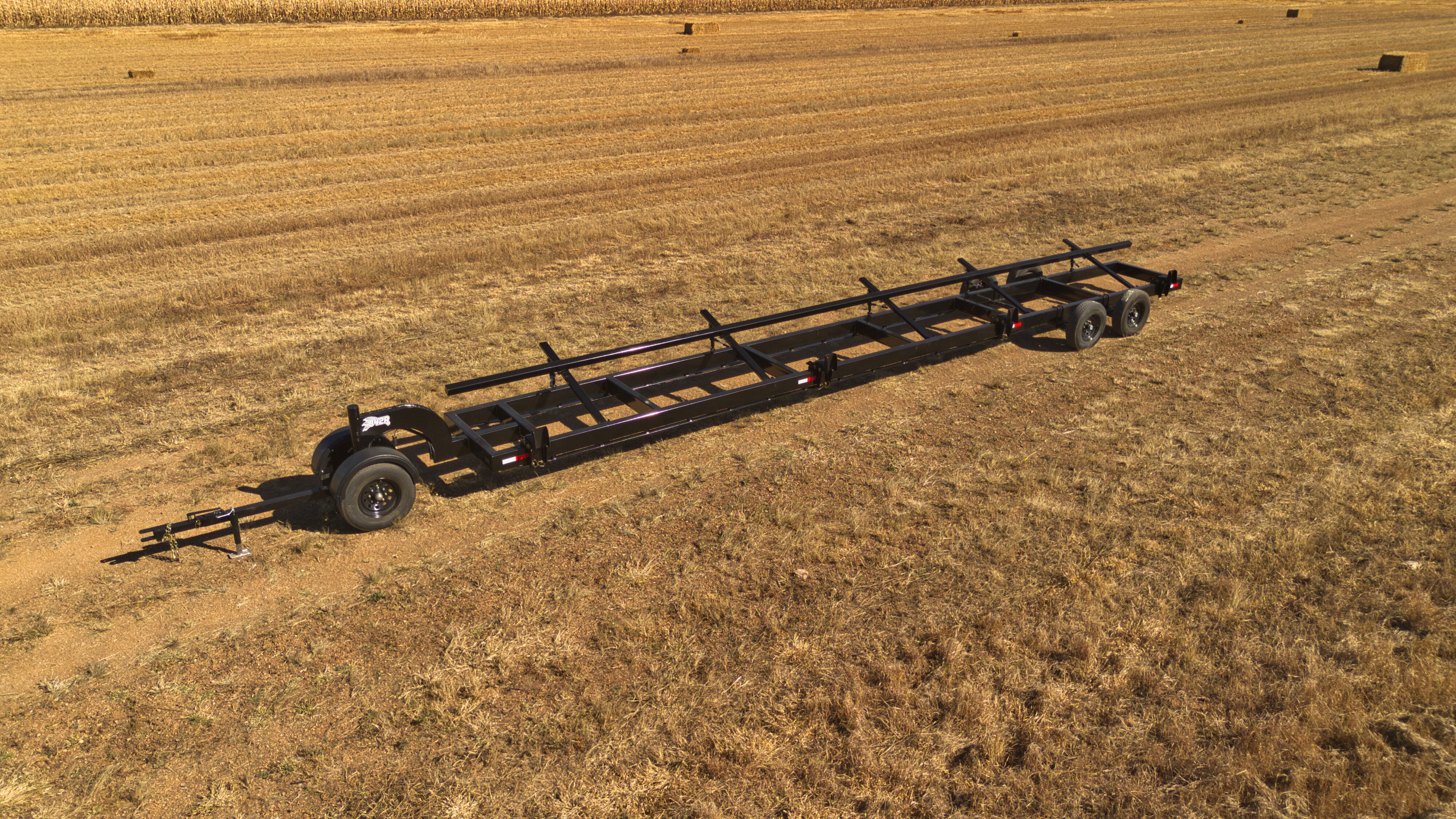

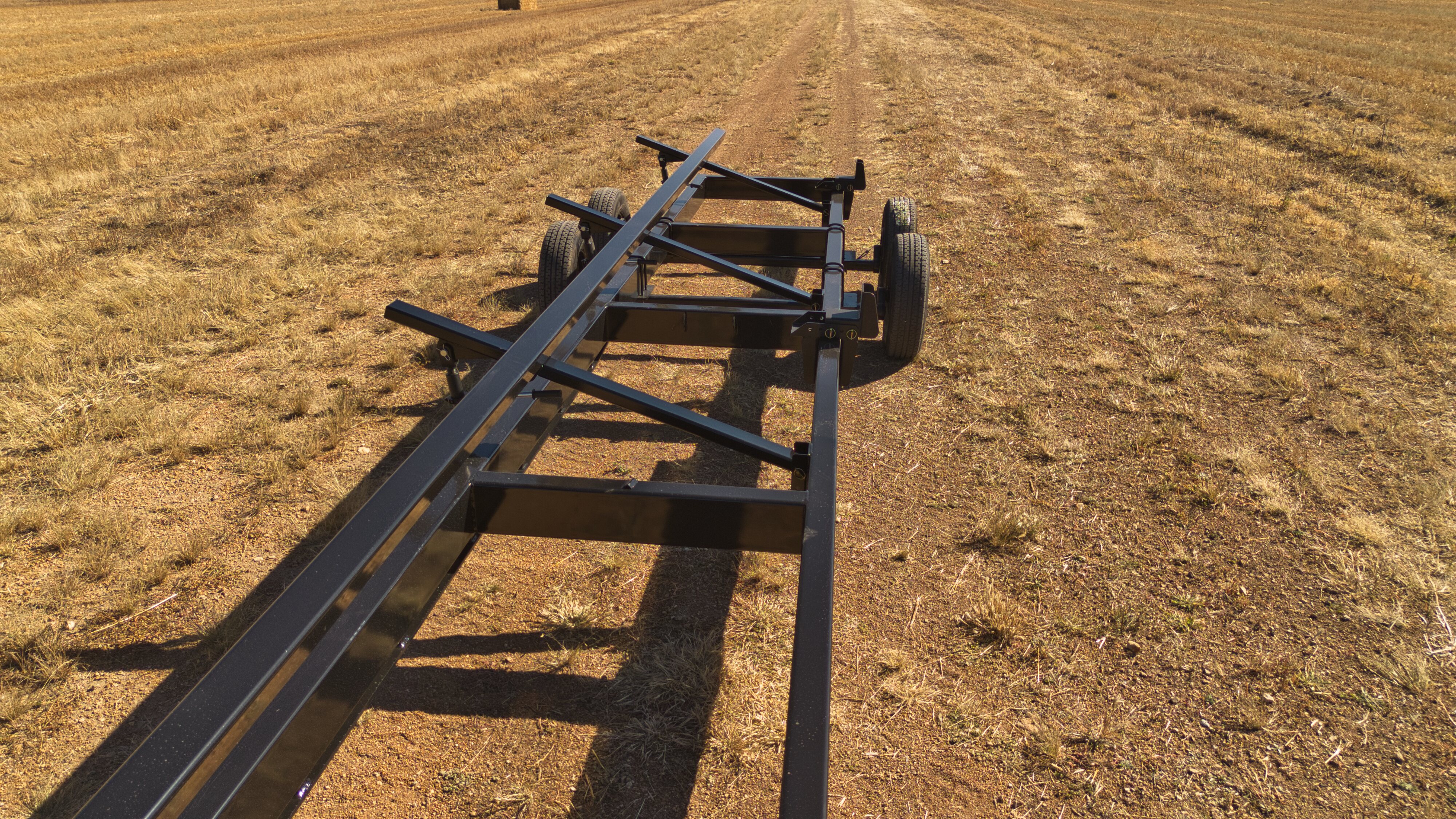

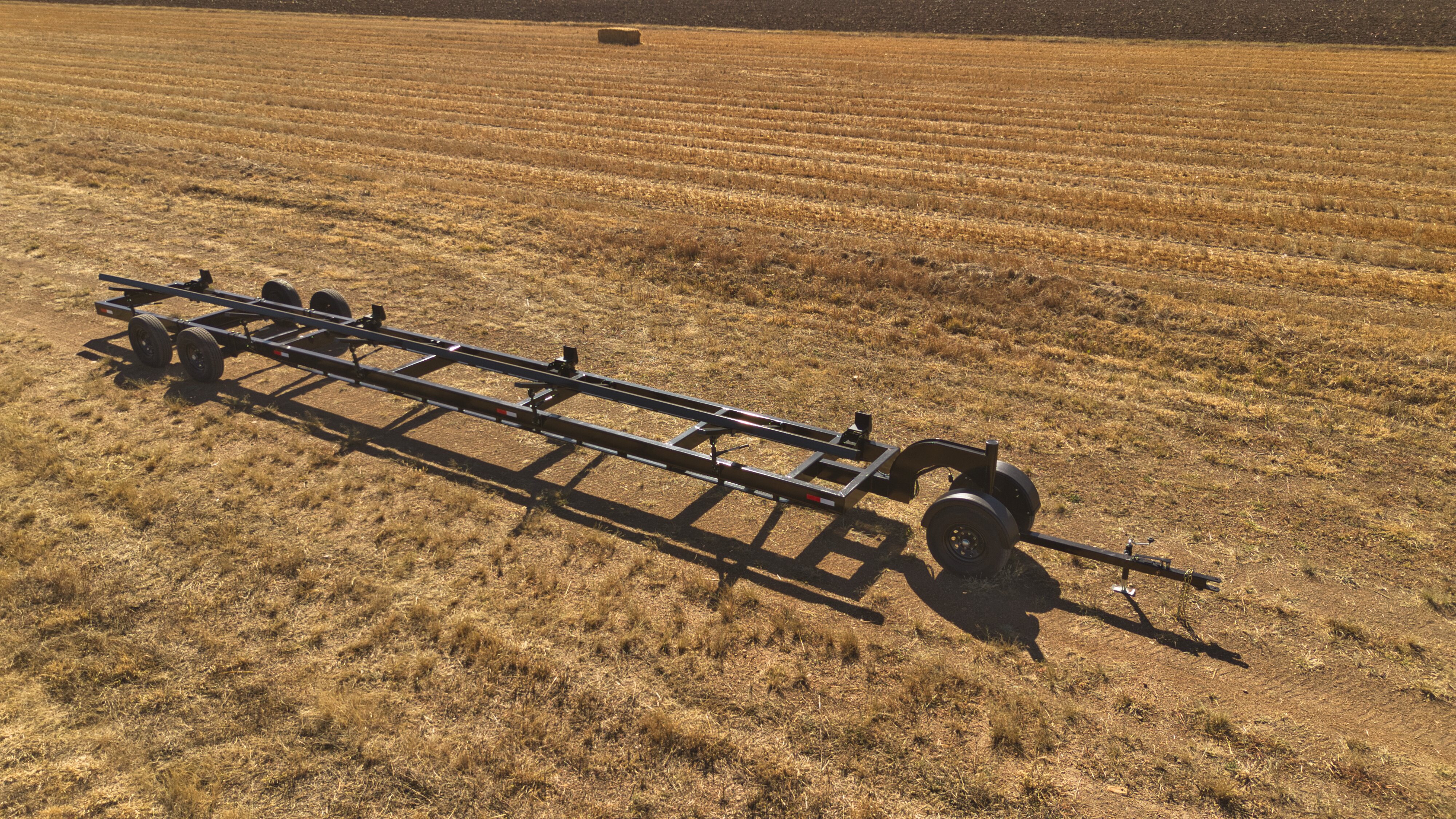

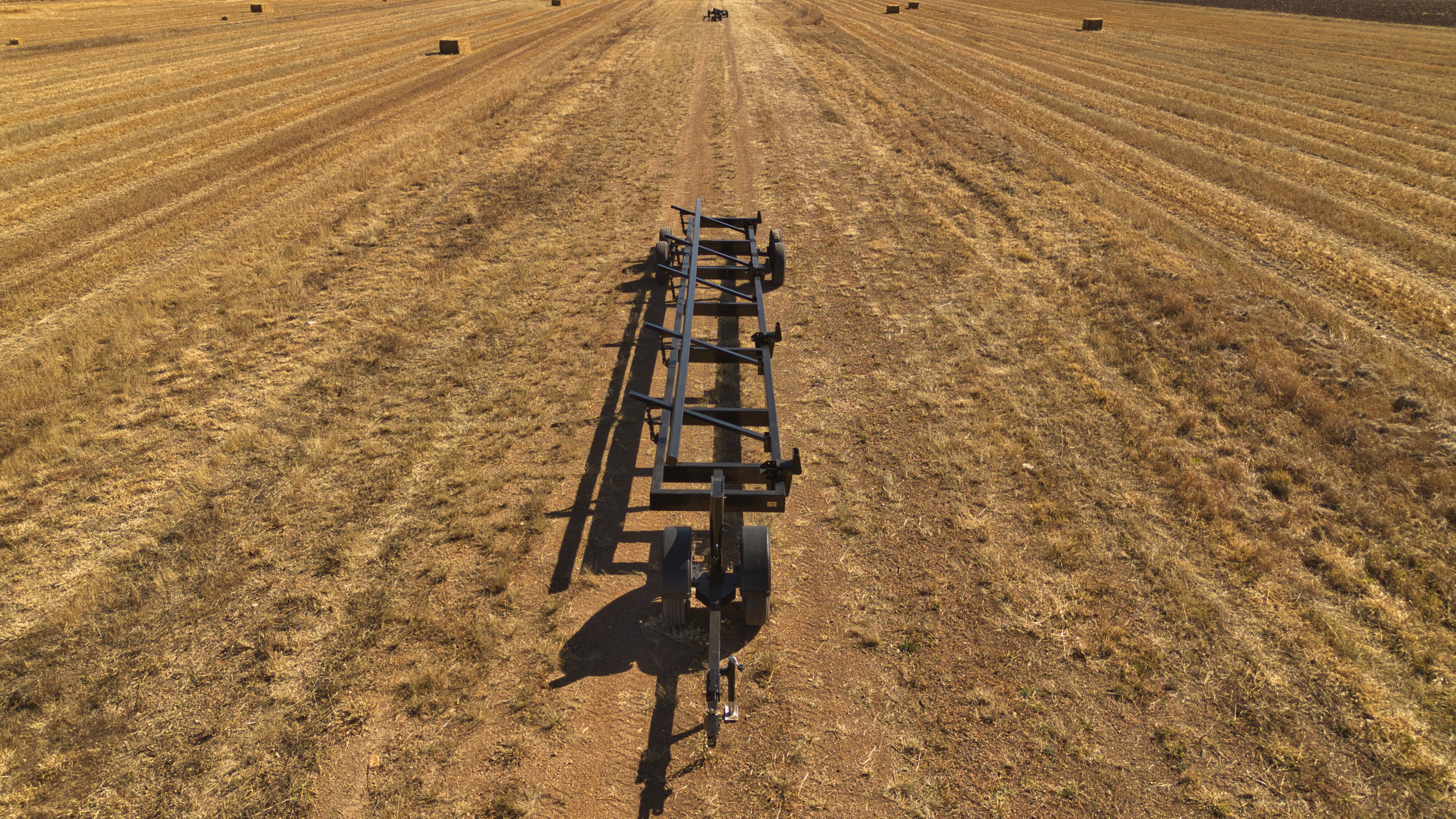

The R842 pushes the R-Series concept out to 42’, giving you room for larger heads while still keeping an adjustable incline system. This is a great fit for growers who run 40–42’ drapers and want a trailer that can be tuned to the header instead of fighting it into position. Torsion axles and a 7k dolly help keep the trailer steady at speed, and the electric brakes on one axle provide confidence on grades and in traffic. With four adjustable brackets, plastic fenders, rear lighting, and a telescopic hitch, the R42 is built as a full-featured wagon for serious header transport.
