Specifications

FeatureDescription
Type3-point disc harrow (V-frame)
Hitch CategoryCat II
Disc Diameter22”
Disc Thickness3/16”

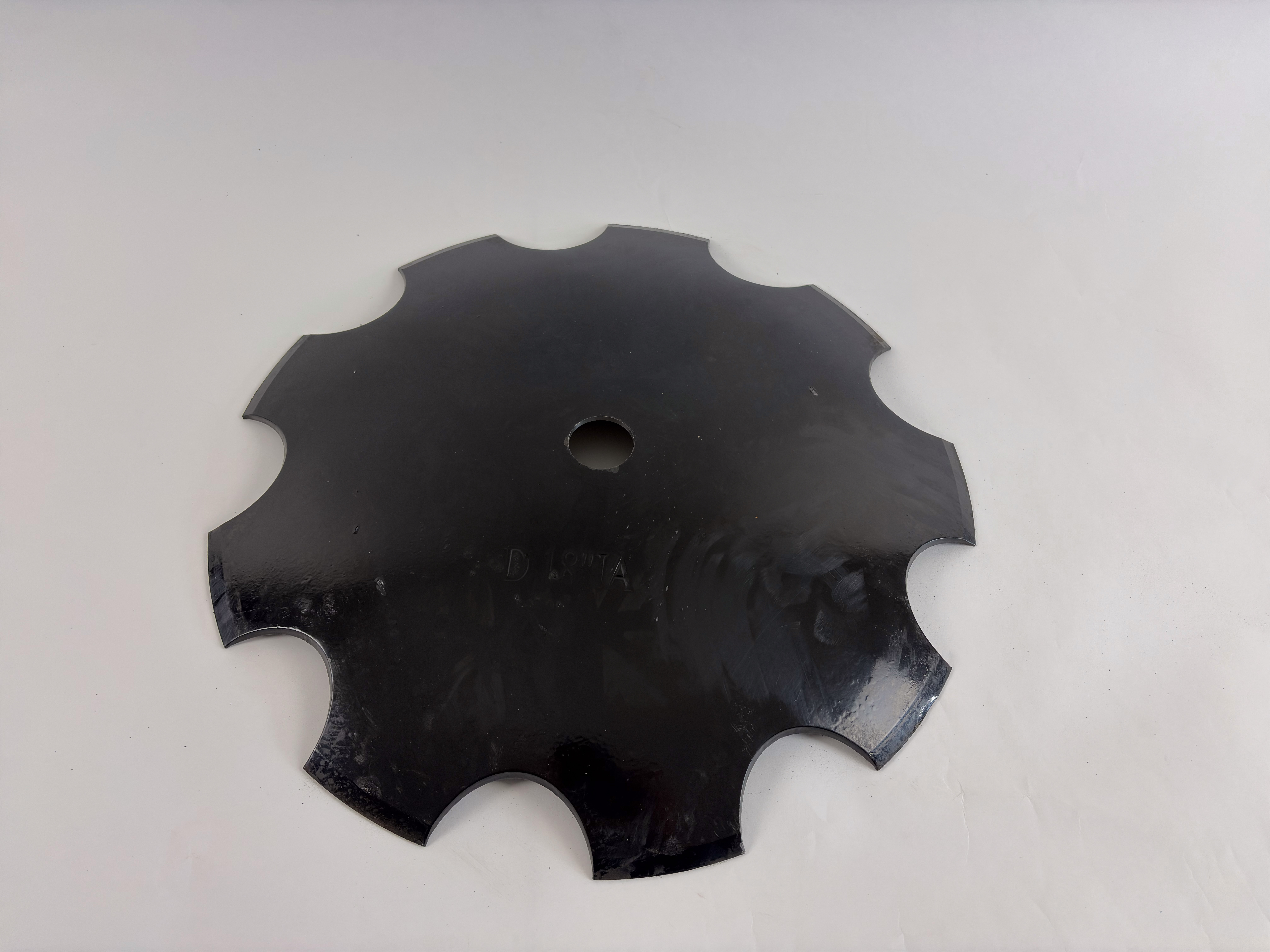

Disc TypePlain or notched
Disc MaterialCarbon steel
Disc Spacing8”
Number of Discs16, 18, 20, 22, 24
Working WidthApprox. 64” – 96”
Gang AngleAdjustable
Frame3” × 4” × 3/16” steel tubing
ScrapersIncluded / adjustable
TransportNo wheels
JackNot required
Recommended HP60–105 HP
Soil TypeMedium
Residue HandlingModerate

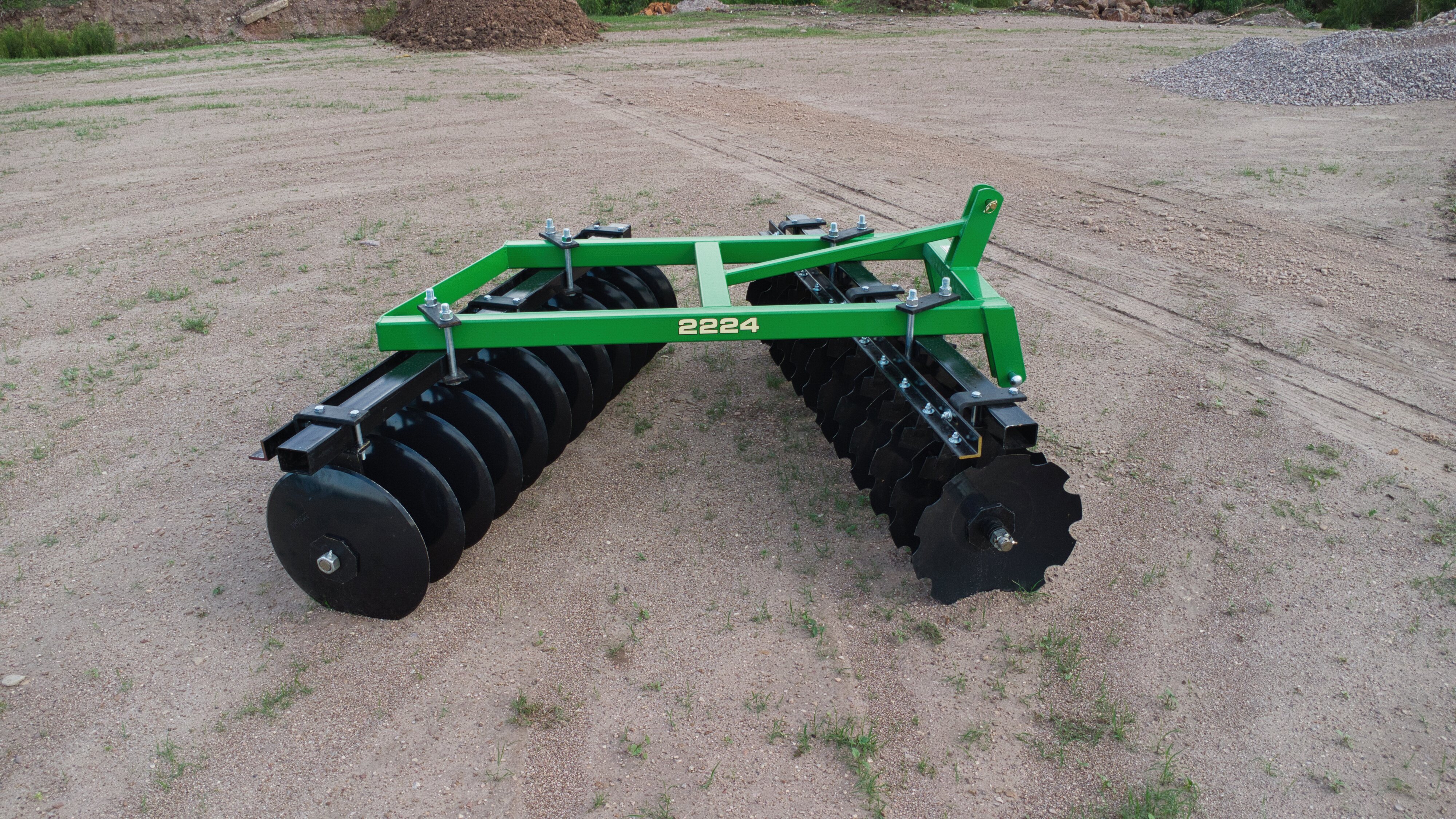

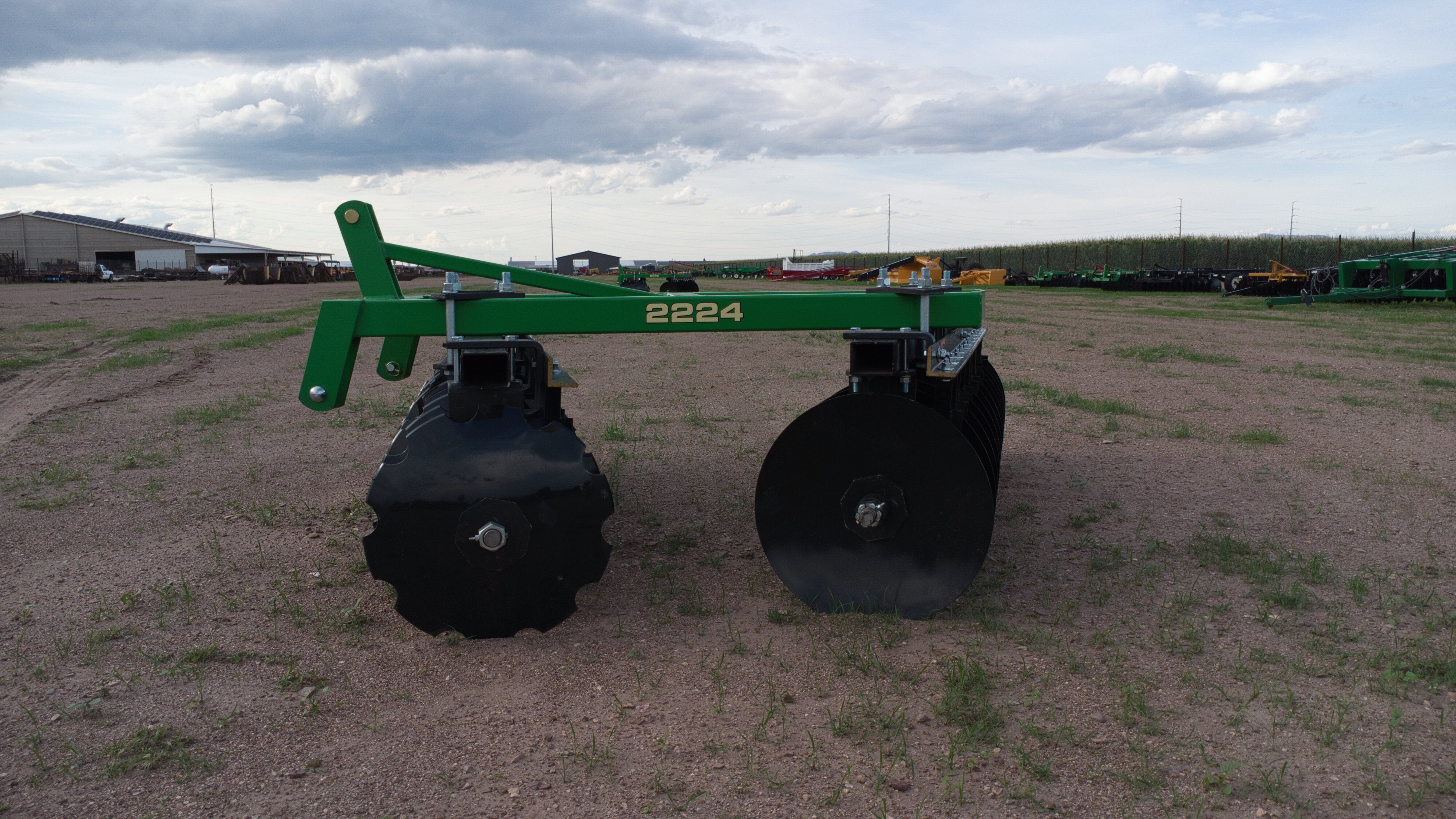

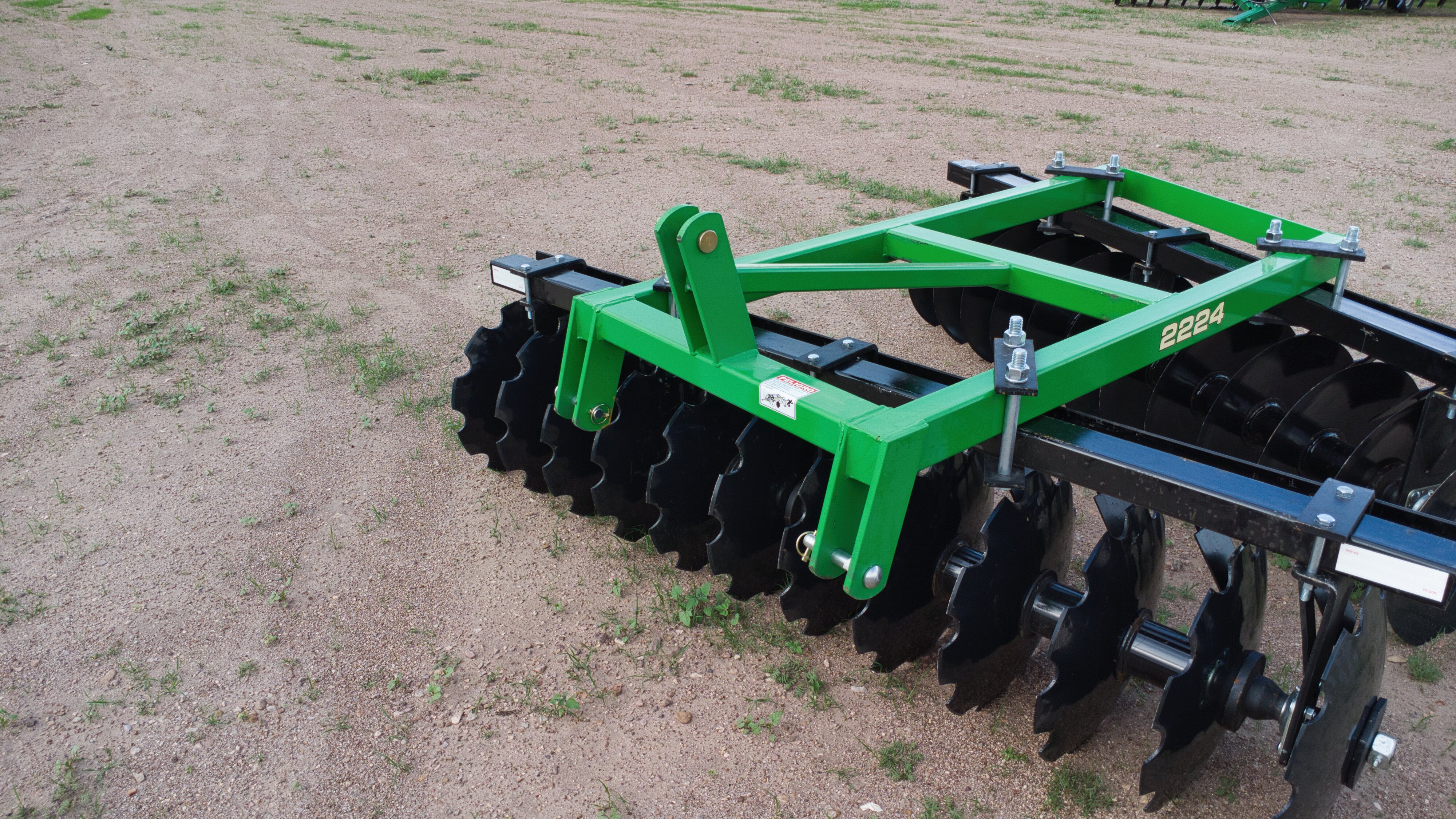

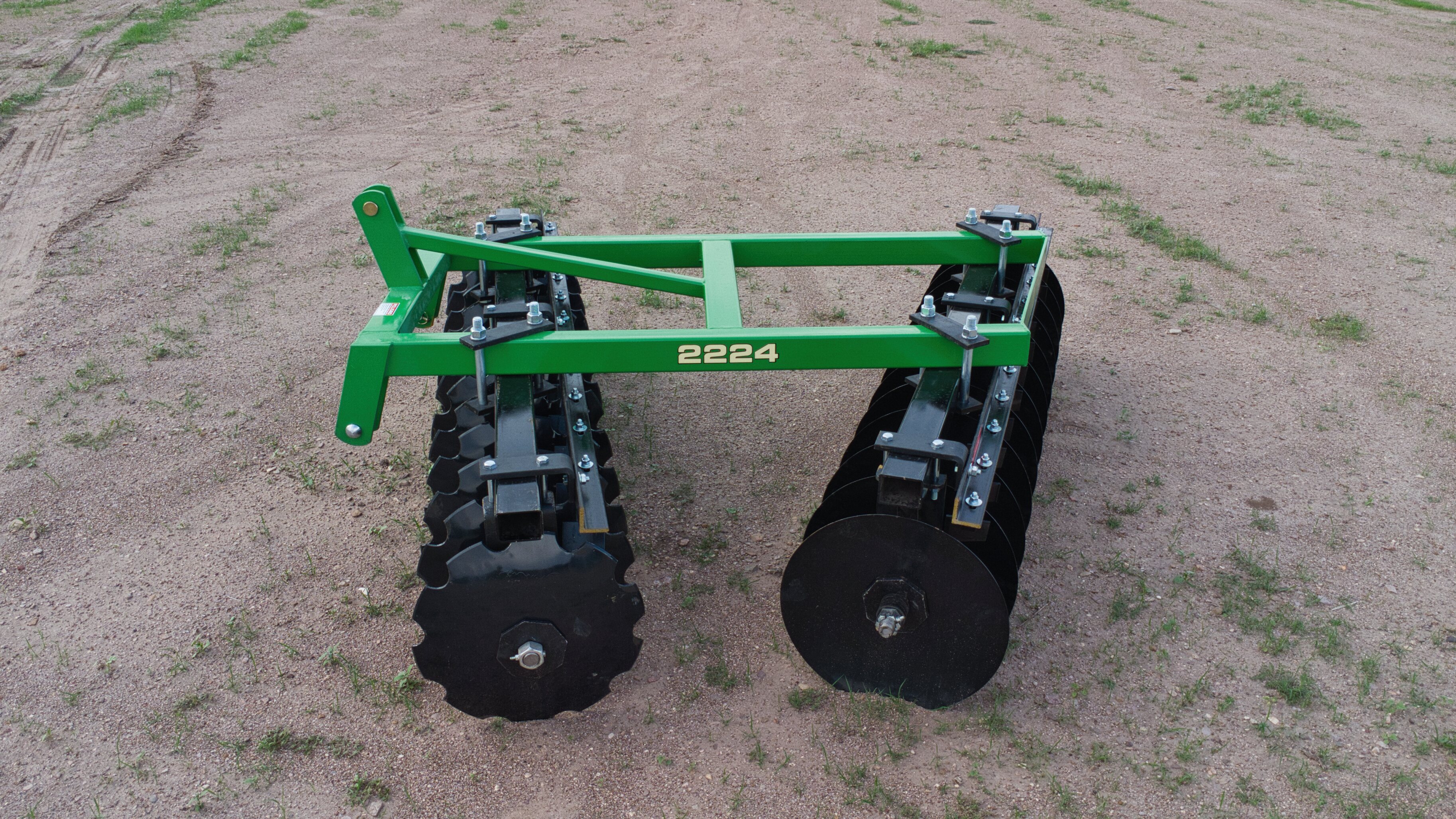

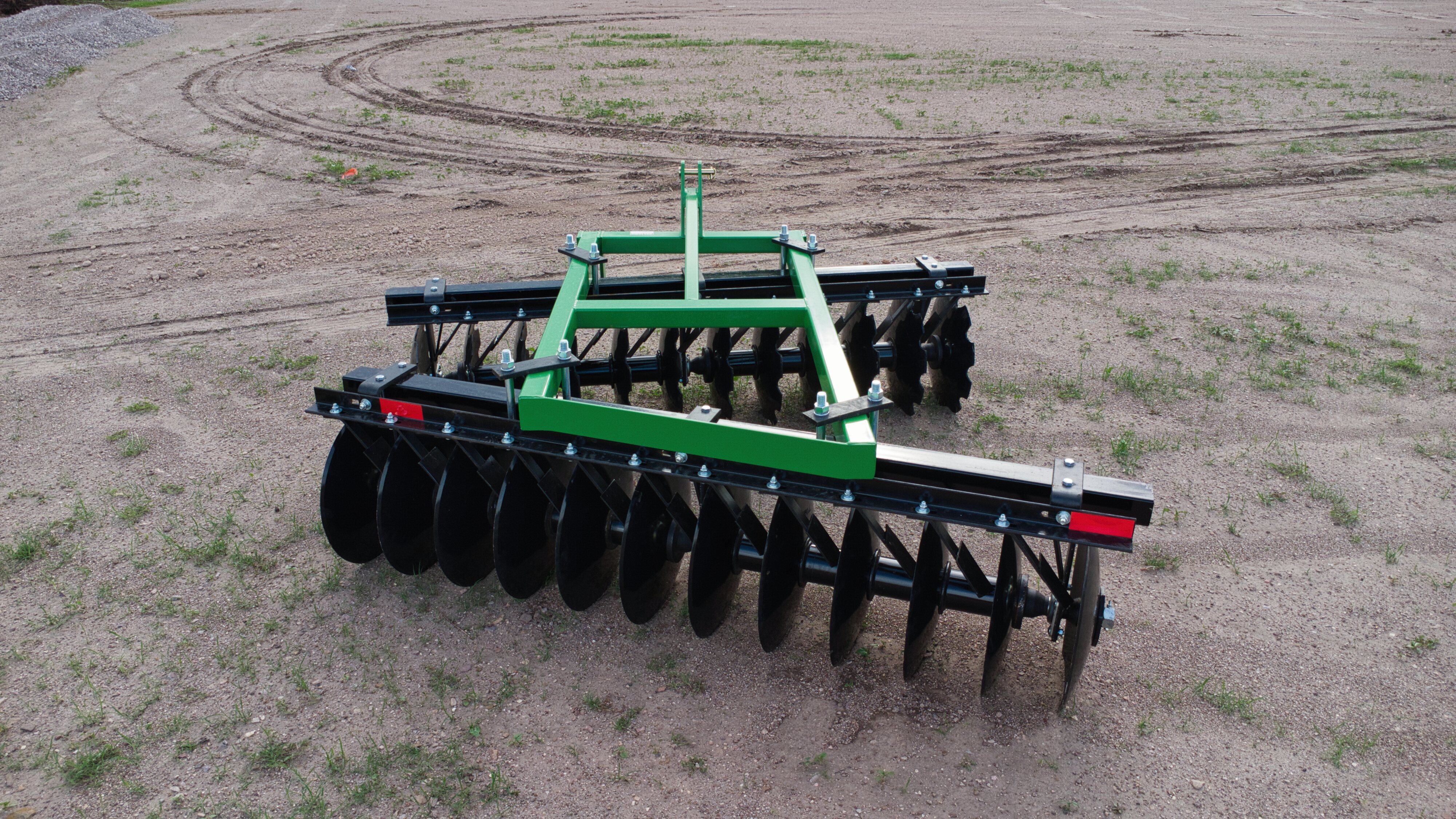

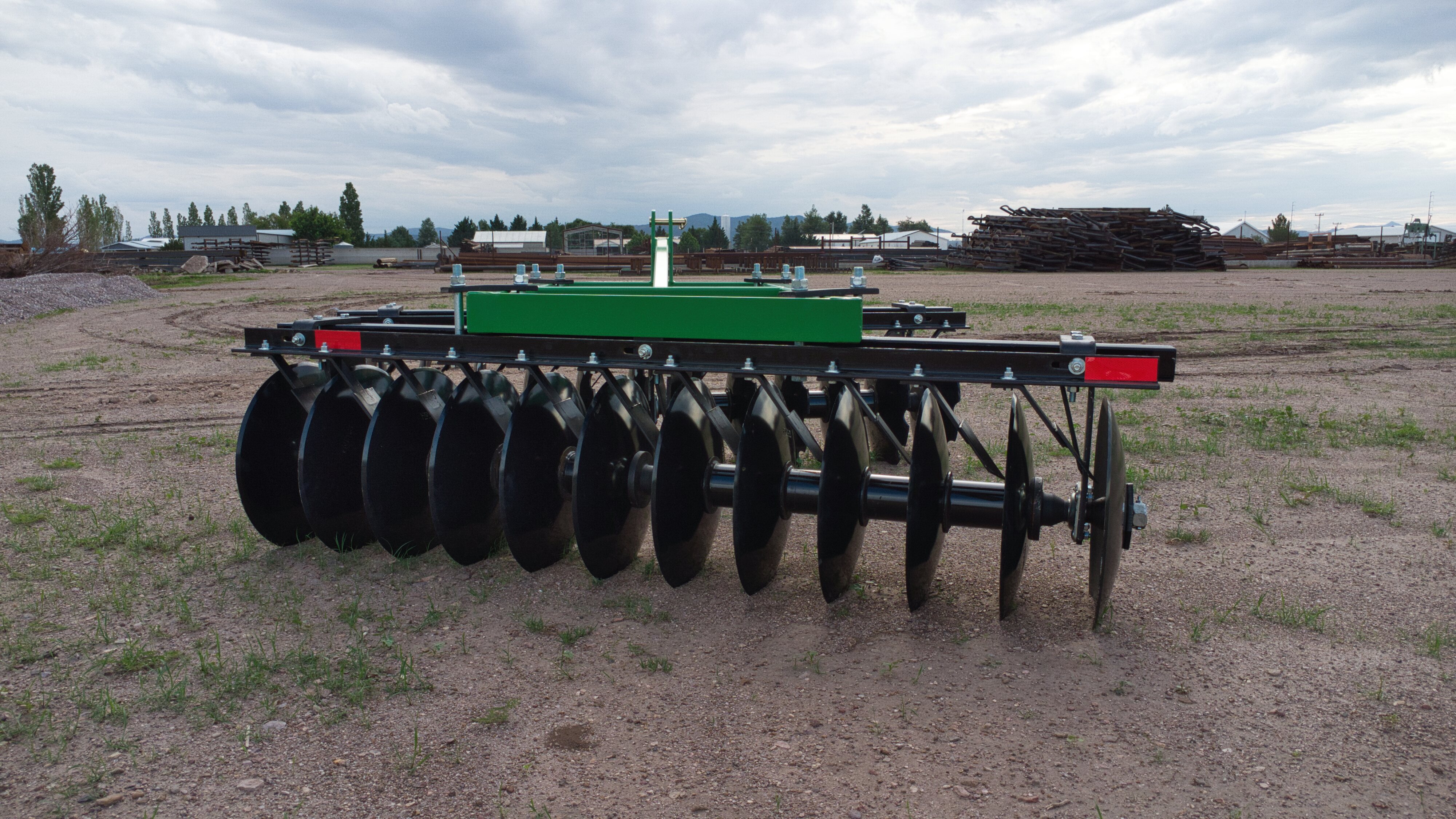

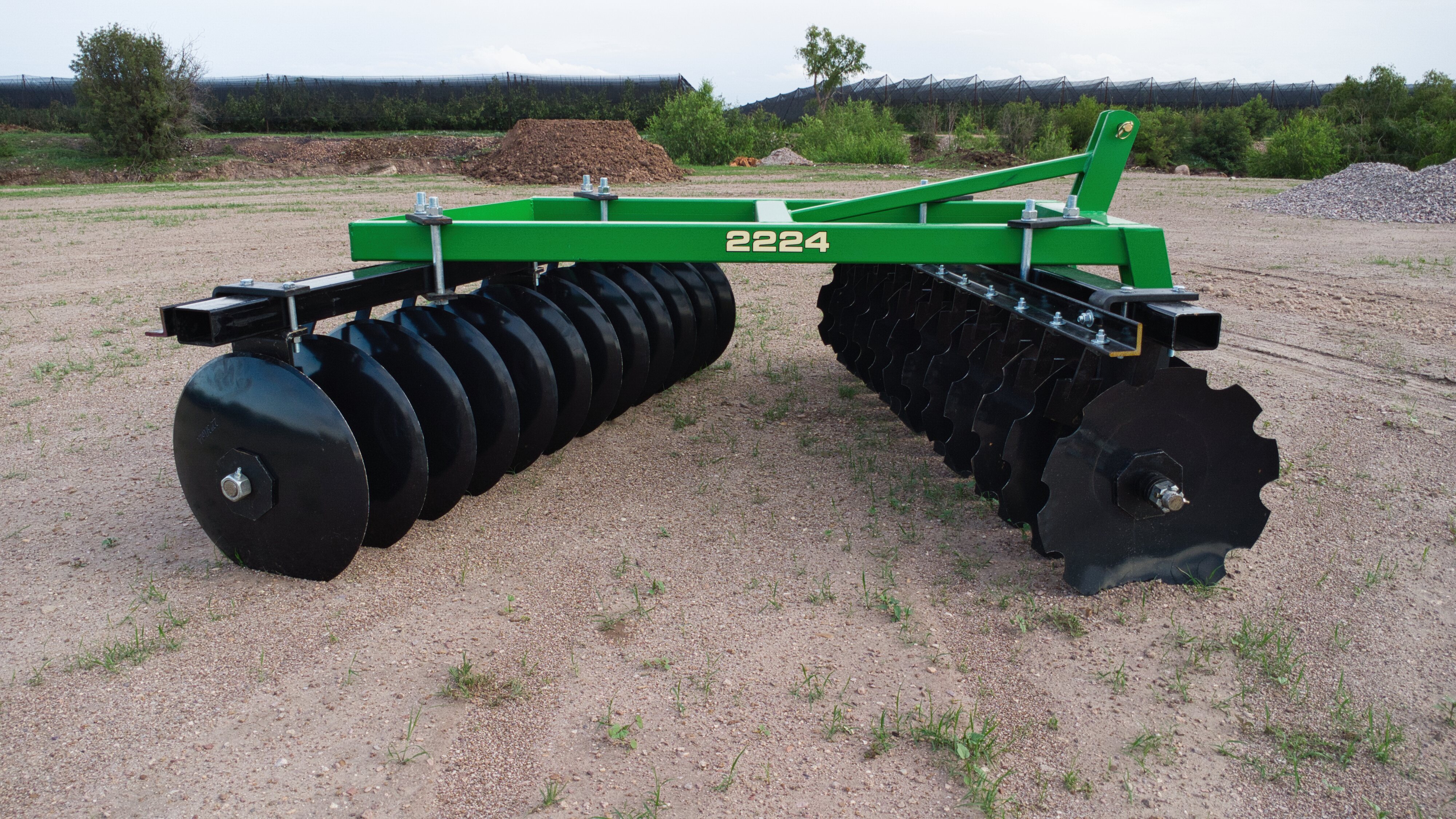

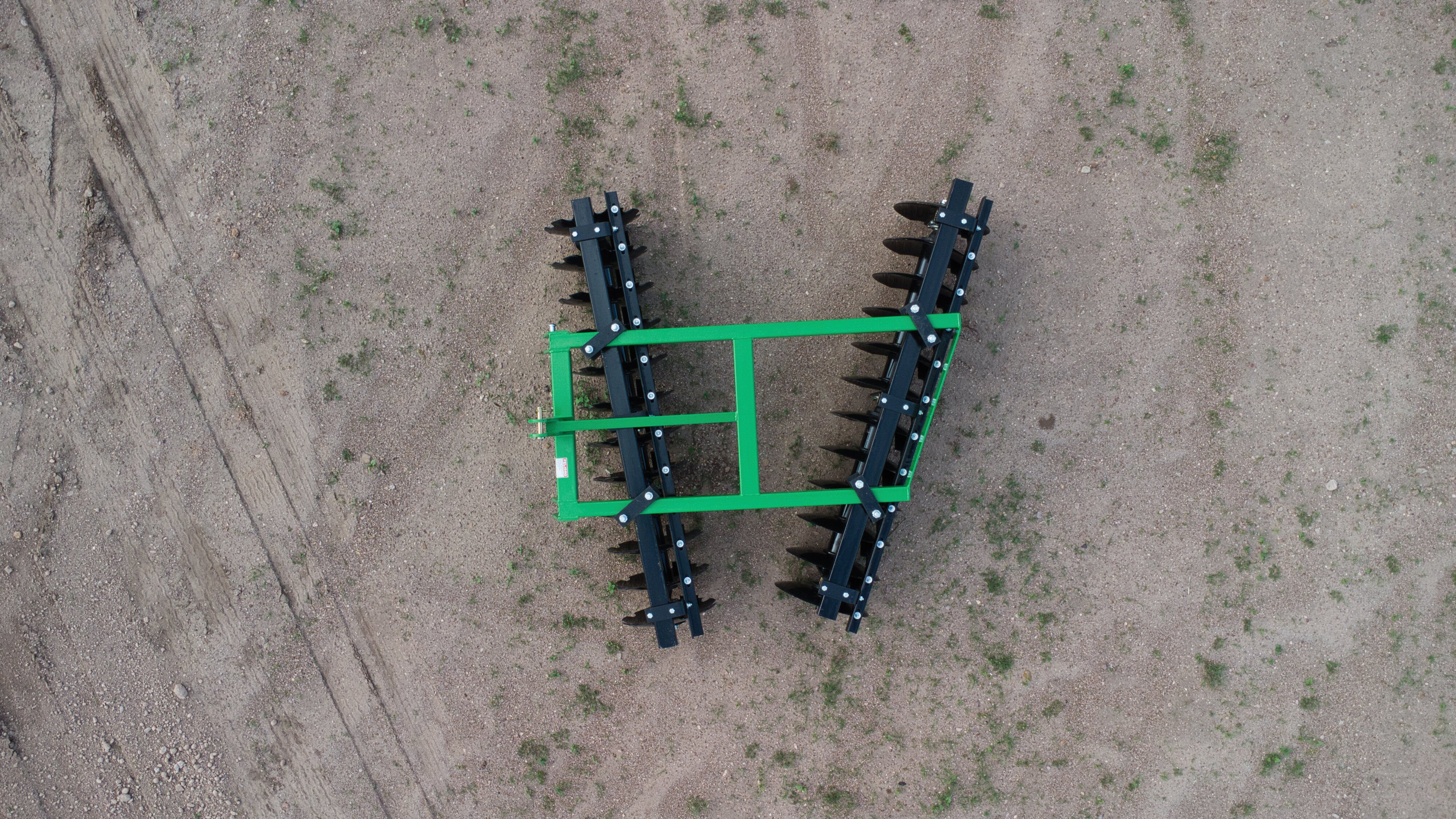

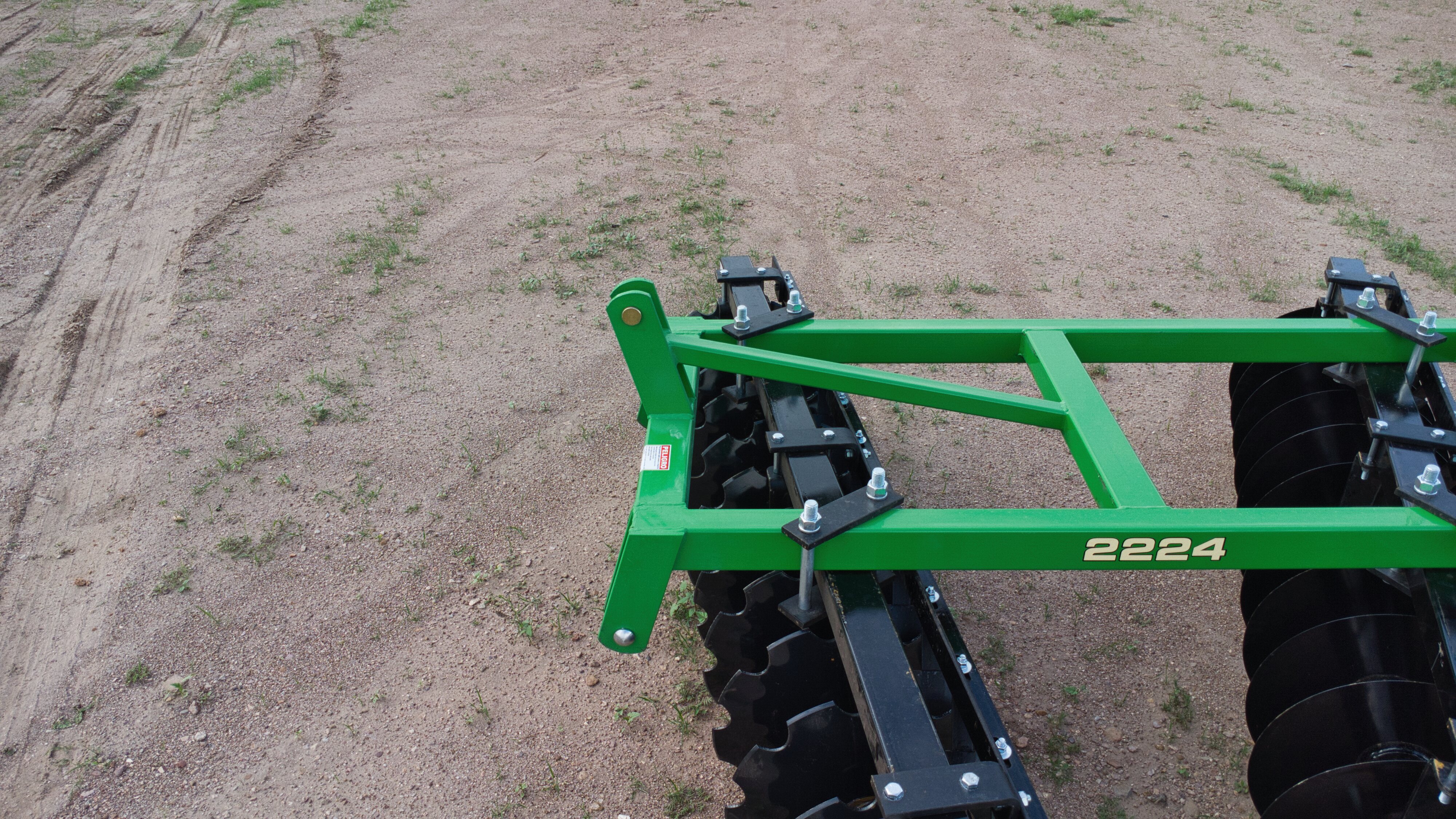

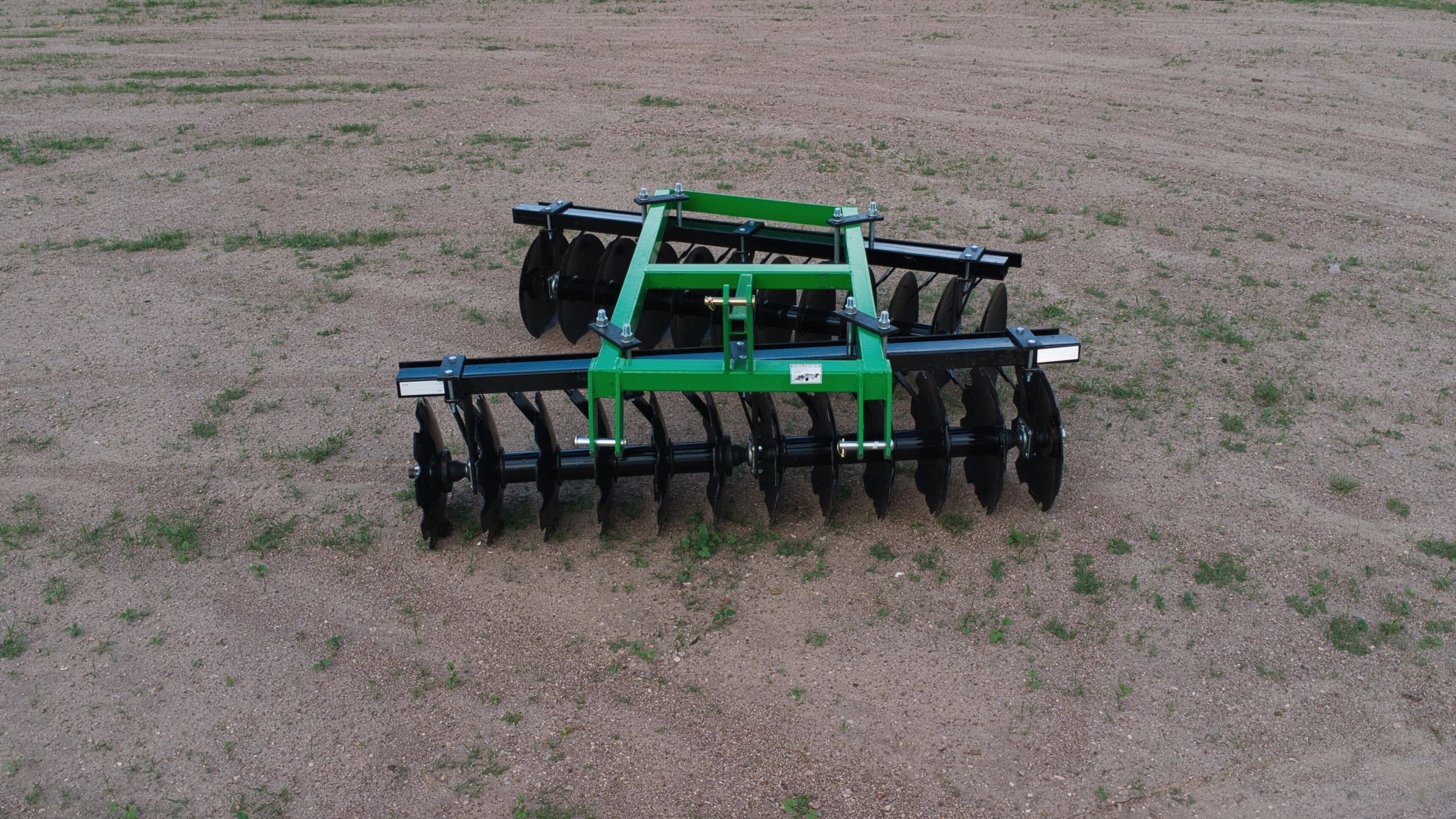

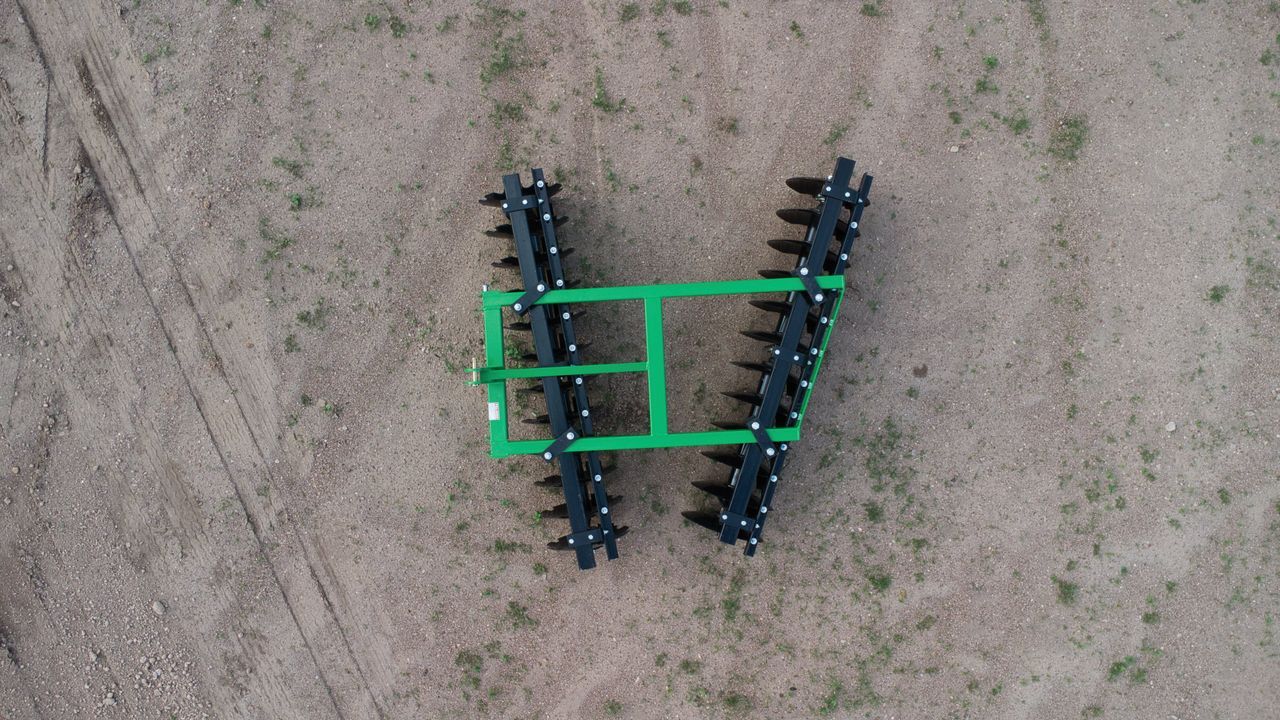

The 22” V-type disc harrow is a step up in capacity, built for medium-duty field work where more penetration and coverage are needed. It handles tougher soil conditions better than smaller models while still keeping a simple, easy-to-maintain design. With an adjustable gang angle and heavier frame, this model gives you the flexibility to work different soil types without overcomplicating operation.

×
