Specifications
| Feature | Description |
|---|---|
| Bed Size | 80” × 14’ |
| Bed Volume | 7.4 cu yd |
| GVWR | 14,000 lb |
| Axles | 2 × 7,000 lb |
| Tires | 235/80R16 on 16" rims |
| Frame | 6" C-channel main frame |
| Floor / Walls | 8 ga floor, 10 ga walls |
| Hoist | Scissor lift (mid-mount) |
| Hydraulic System | 12 V double-acting electric-hydraulic |
| Dump Angle | 37° |
| Suspension | Tandem spring |
| Brakes | Electric |
| Jack | 12k optional hydraulic |
| Coupler | 2-5/16" ball |
| Electrical | Sealed wiring harness with breakaway kit |
| Lighting | DOT-approved LED package |
| Tarp System | Manual (84" × 18') |
| Finish | Sandblasted and powder-coated |
| Color | Black standard |
| Fenders | Heavy-duty steel |

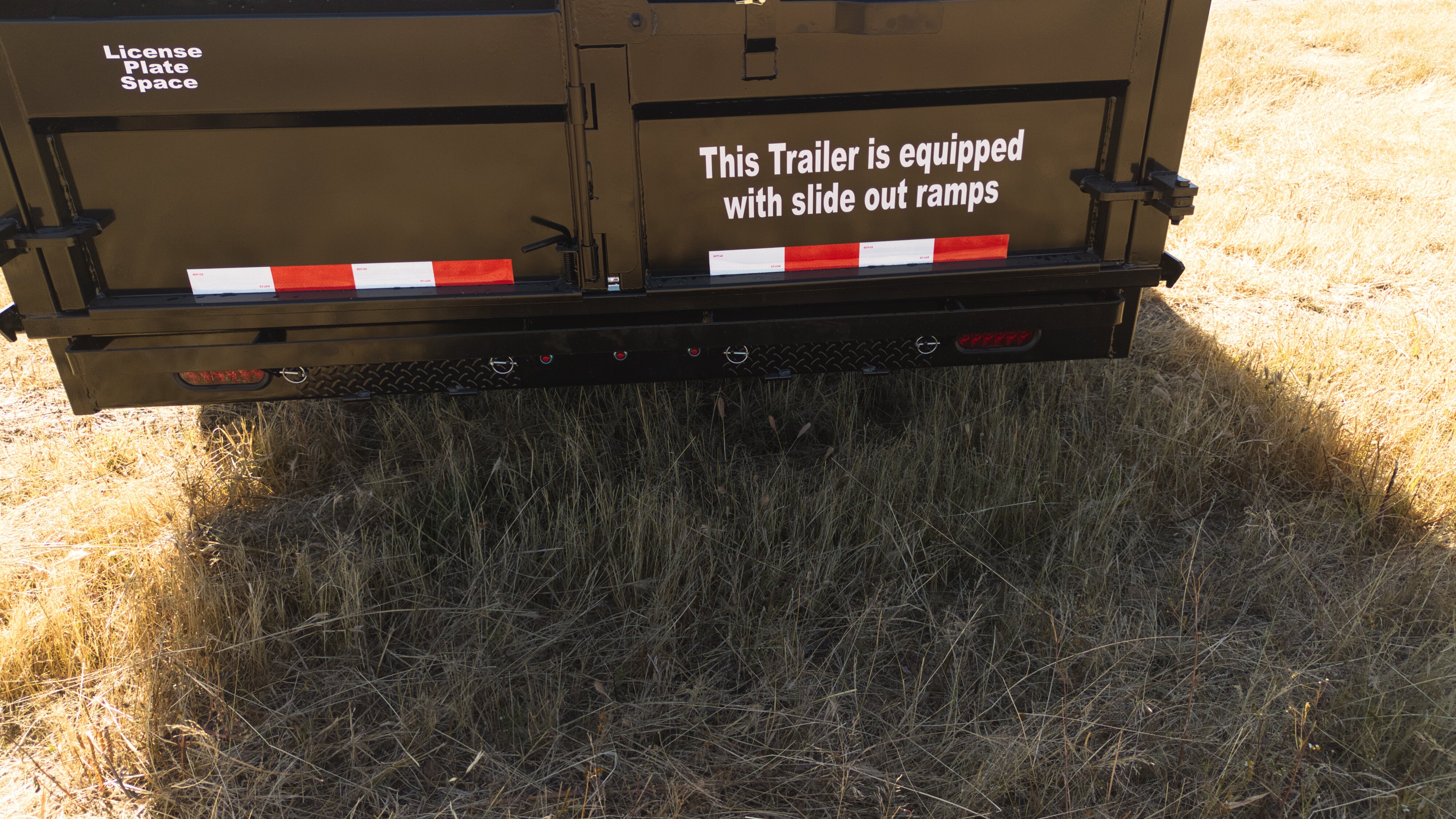

| Optional Features | Loading ramps, solar charger, spare tire mount |

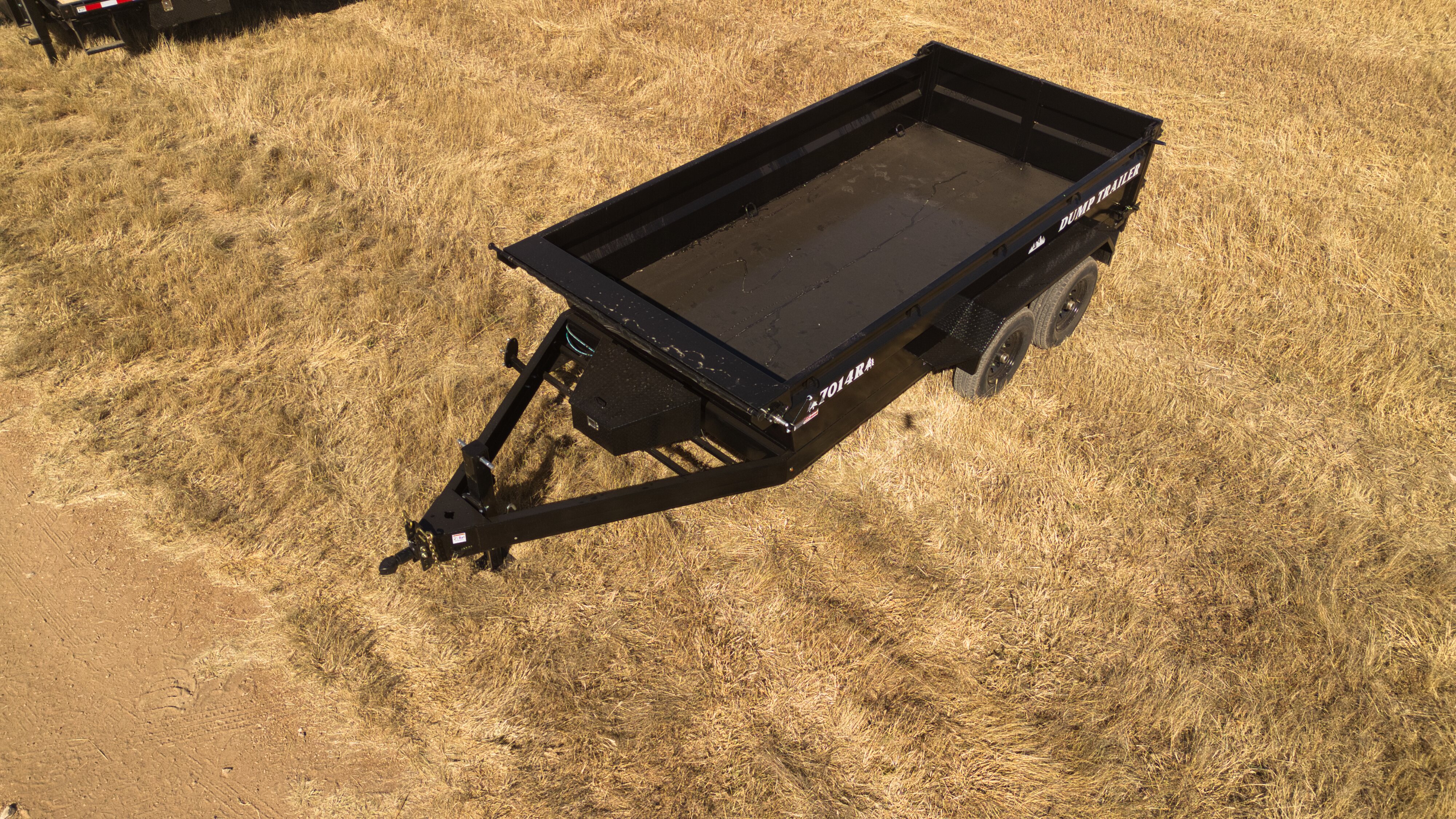

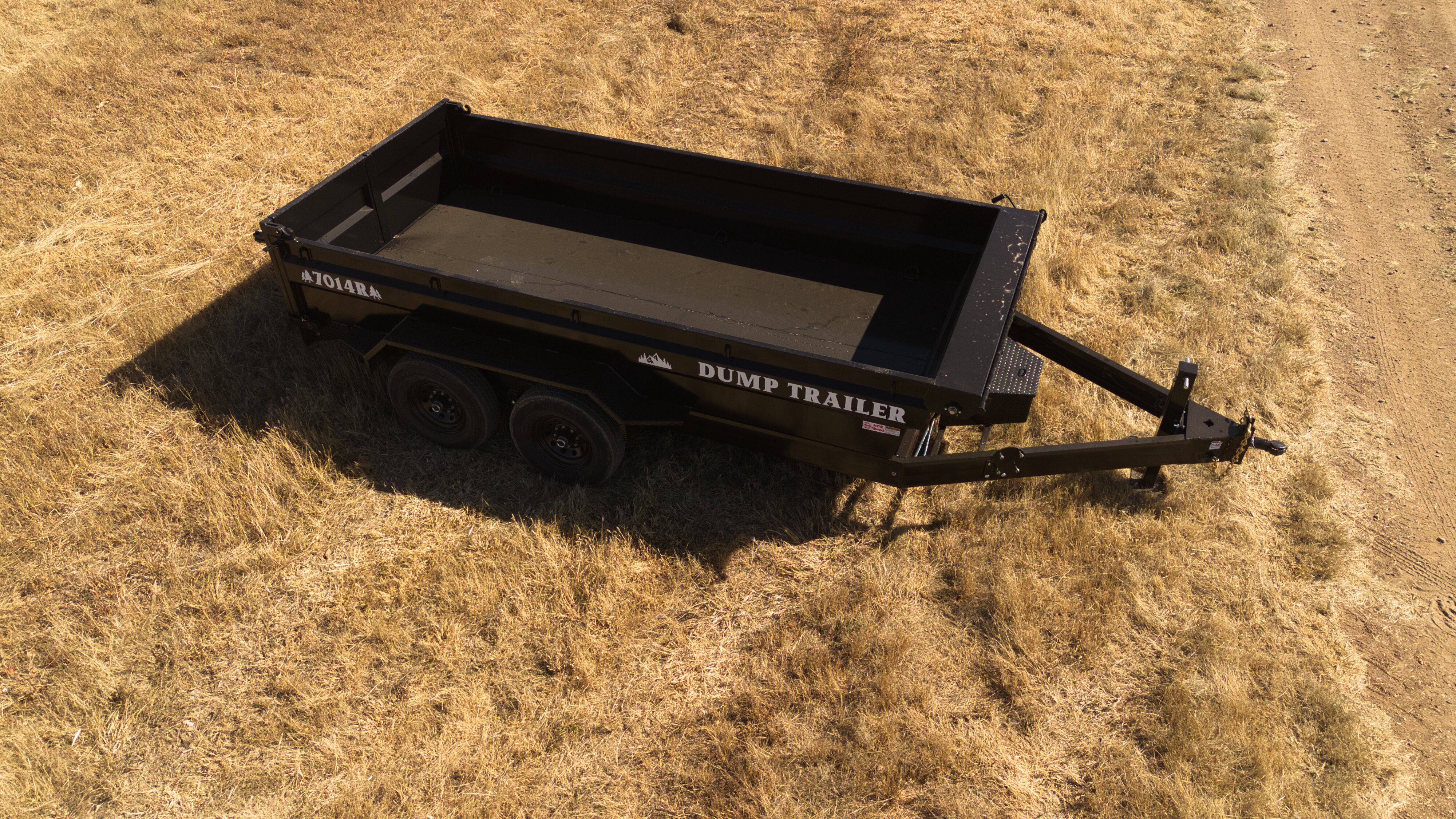

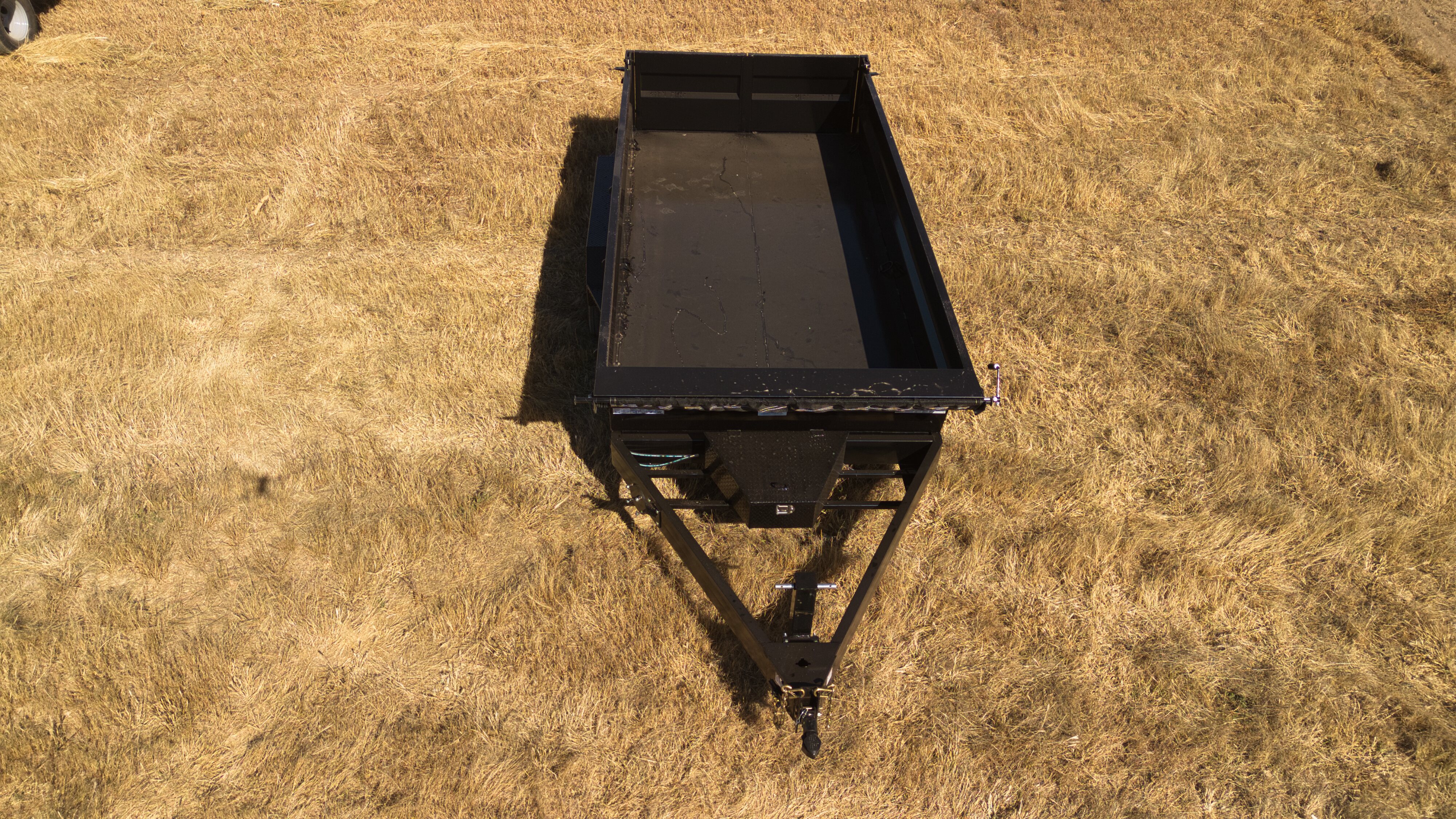

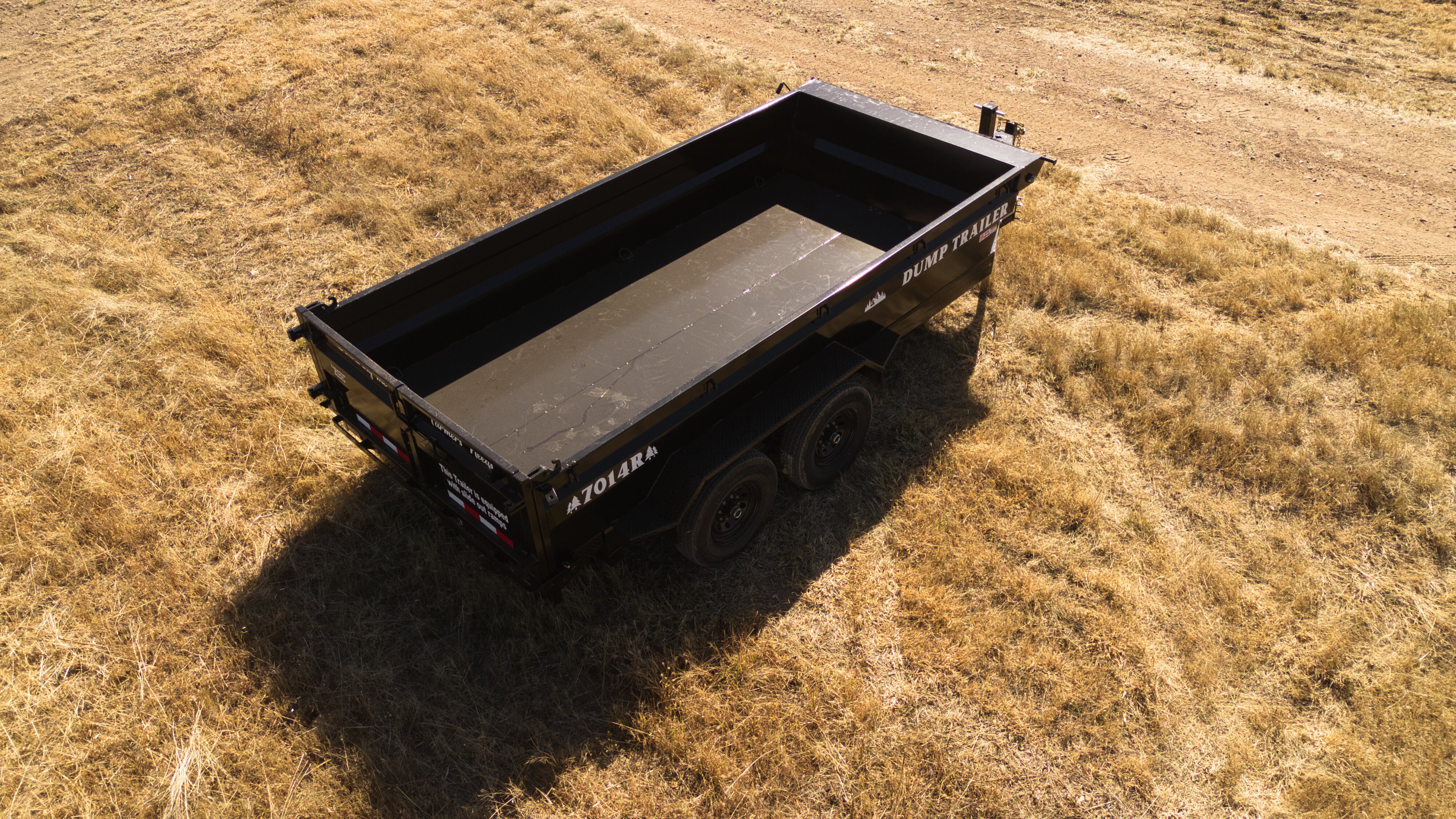

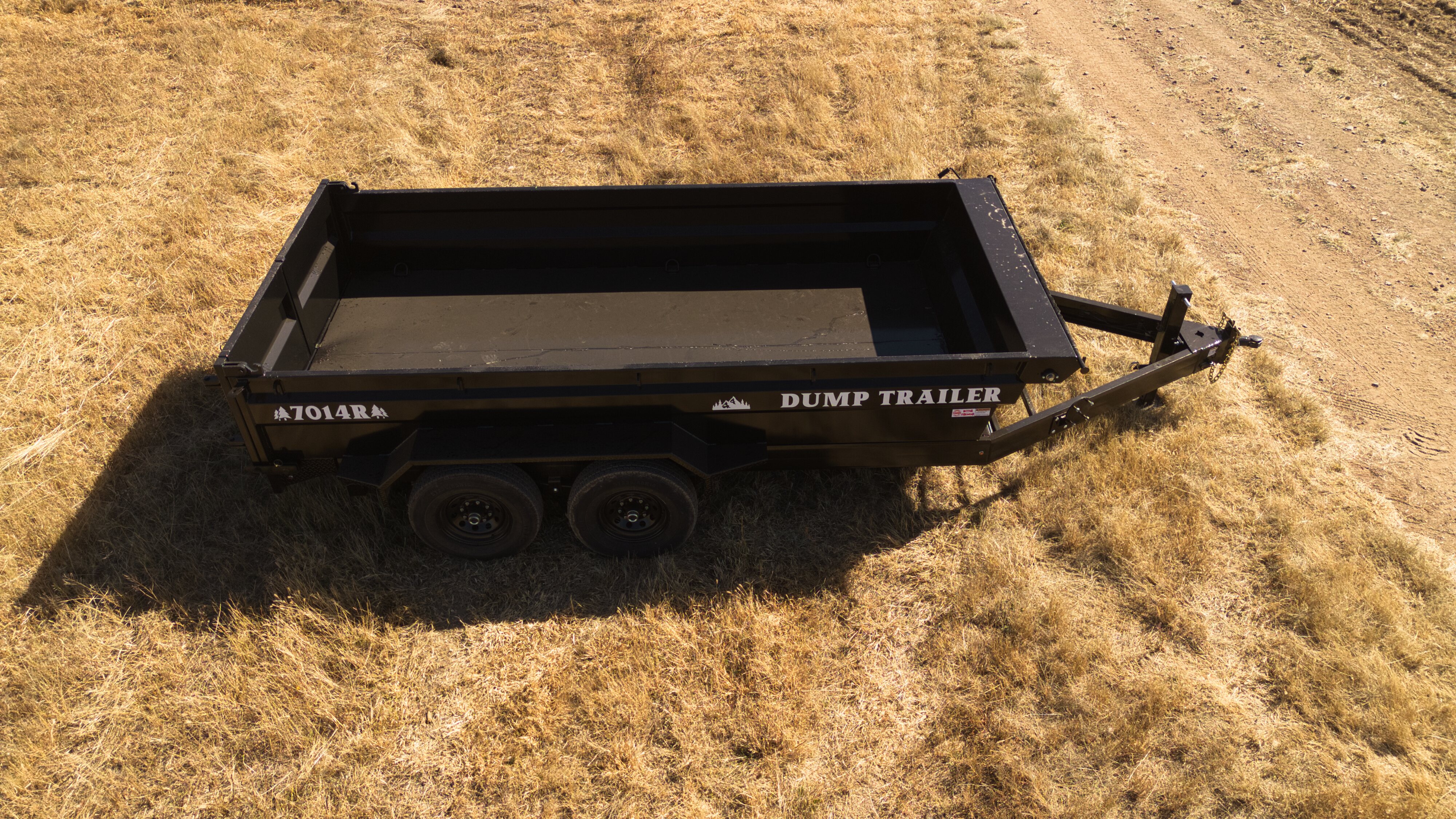

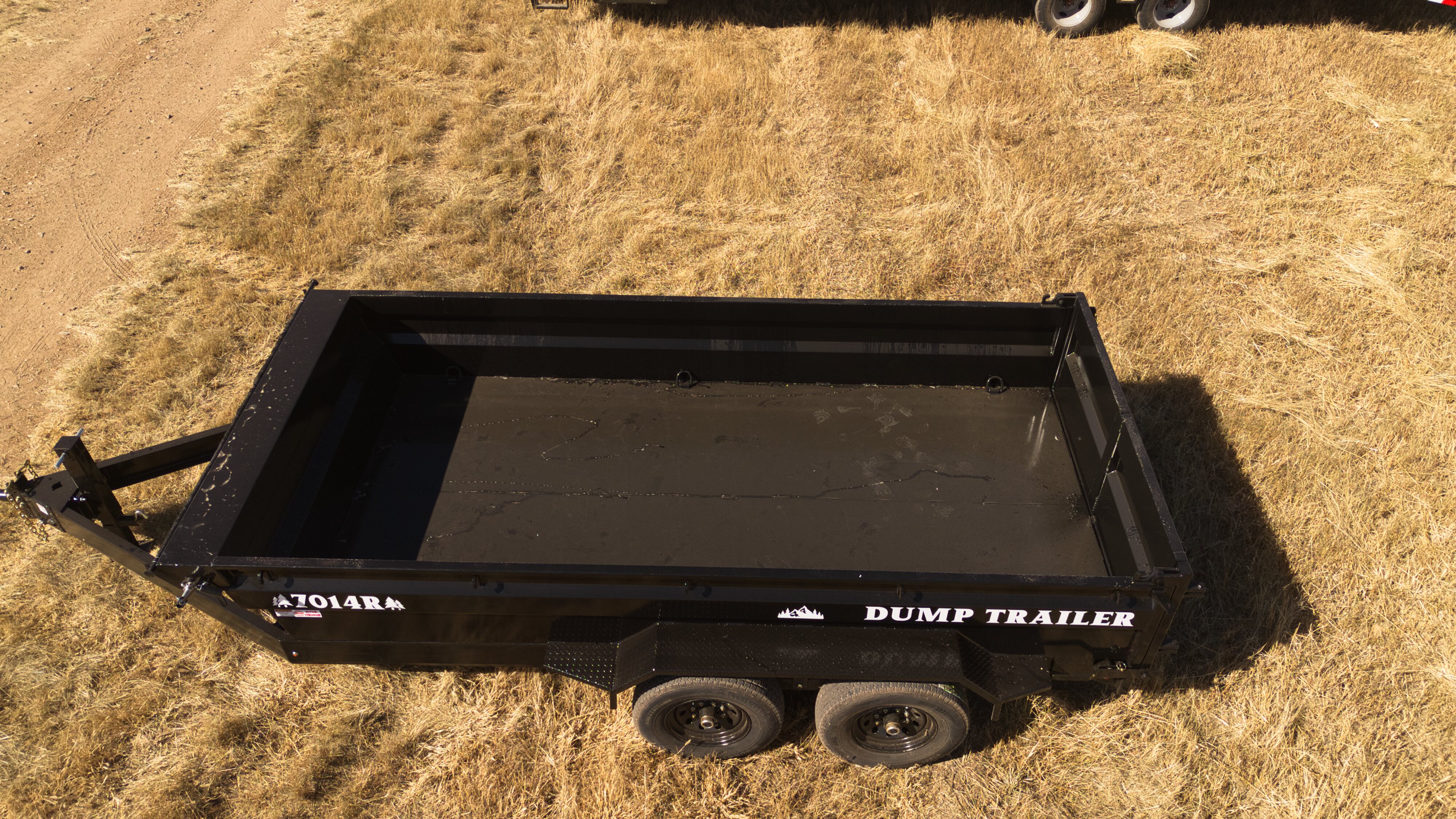

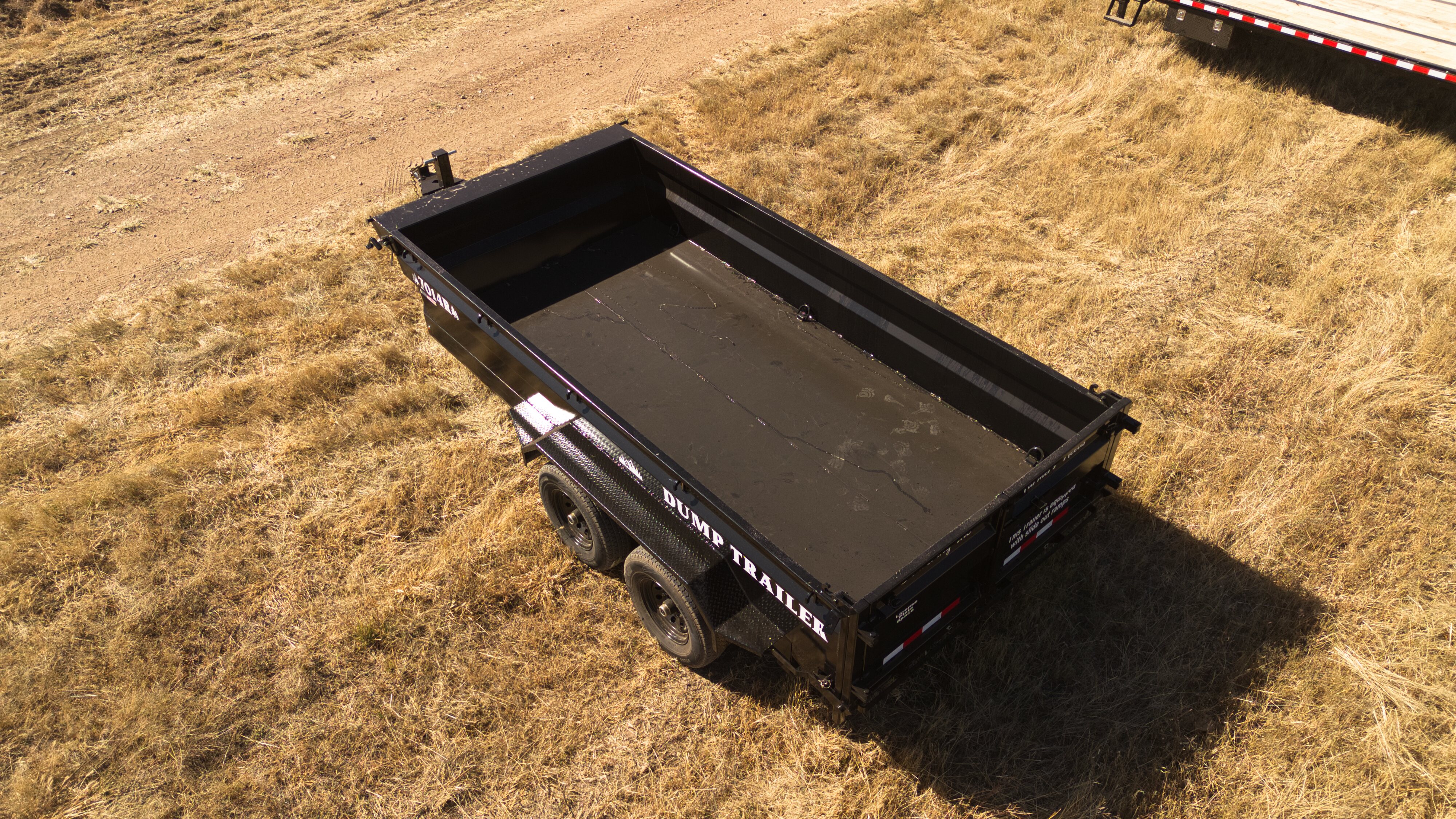

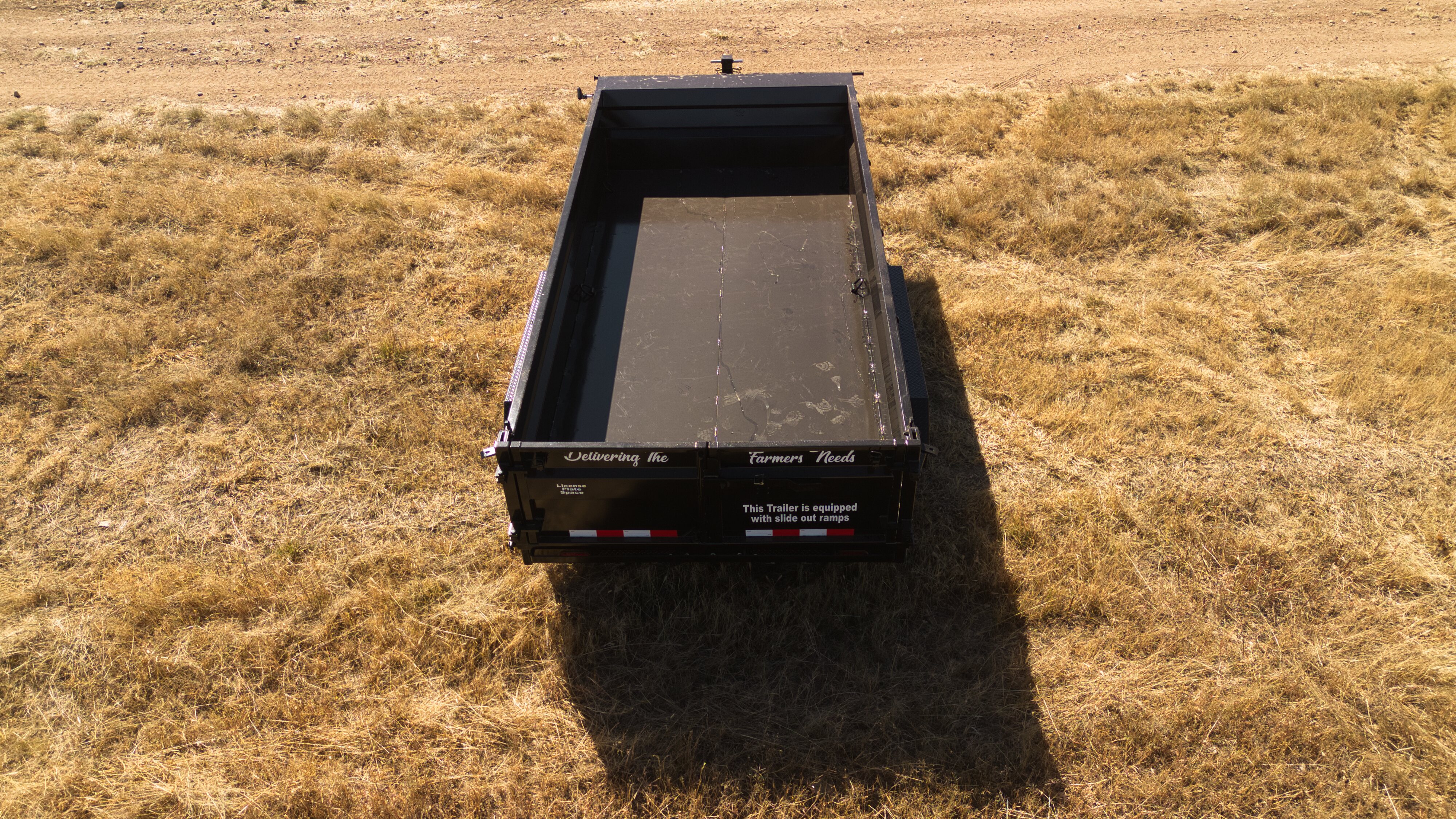

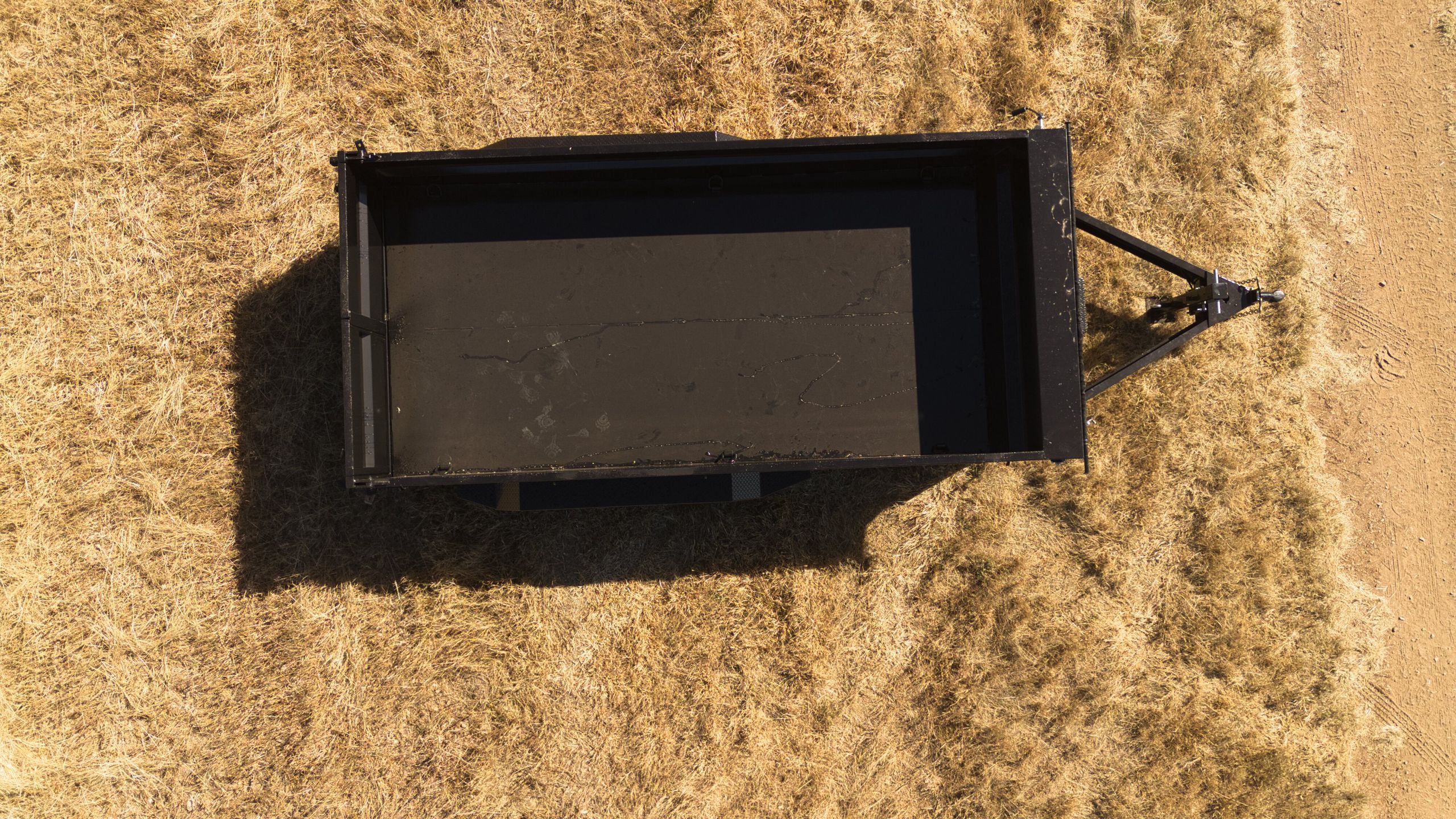

The 7014 is a workhorse built for professionals who need reliable performance and capacity. Its 80”×14’ bed and 14,000 lb GVWR make it perfect for heavy loads of dirt, rock, or equipment. The scissor-lift hoist delivers smooth, stable dumping, while the heavy C-channel frame and 8-gauge floor stand up to years of demanding use. Optional ramps are available for loading compact machinery or equipment.
